Keywords:PETRI DISH PACKING SYSTEM, PETRI DISH INJECTION MOLDING SOLUTIONS

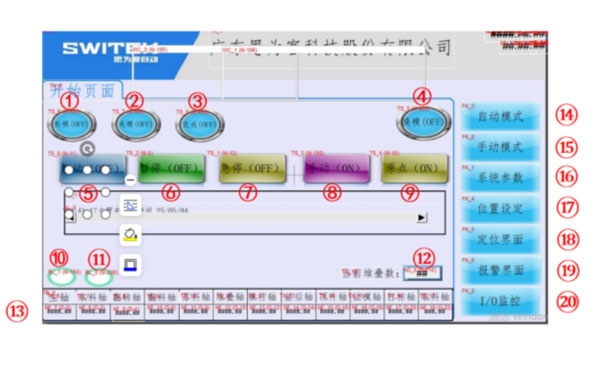

The main page is the human/machine interface of the SWITEK side entry petri dish packing system after power on, where the operator of the petri dish packing system start the programming, the parameters setting of petri dish packing system. Here in this chapter we'll introduce the function of the buttons.
| No. | Description |
|---|---|
| 1 | Mold Open (OFF) |
| 2 | Mold Close (OFF) |
| 3 | Mold Close Finished (OFF) |
| 4 | Change Label (OFF) |
| 5 | Start (OFF) |
| 6 | Pause (OFF) |
| 7 | Emergency Stop (OFF) |
| 8 | Manual (OFF) |
| 9 | Origin (ON) |
| 10 | Auto-display |
| 11 | Origin Display |
| 12 | Crurrently Stacked |
| 13 | The Current Position of Axis |
| 14 | Auto Mode |
| 15 | Manual Mode |
| 16 | System Parameters |
| 17 | Position Setting |
| 18 | Position Interface |
| 19 | Alarm Interface |
| 20 | IO Monitor |
