Rotative Vacuum Cups Suspensions
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00060 | VFR1011-M5 | M5 | M5 | φ10 | 3 | 22 | 17 | 8 | 53 | 11 | 11 |
| 8.Y00325 | VFR1021-M5 | M5 | M5 | φ10 | 3 | 41 | 17 | 8 | 82 | 21 | 17 |
| 8.Y00061 | VFR1421-G18 | G1/8 | G1/8 | φ14 | 12 | 40 | 20 | 12 | 93 | 21 | 23 |
| 8.Y00326 | VFR1436-G18 | G1/8 | G1/8 | φ14 | 12 | 60 | 20 | 12 | 128 | 36 | 40 |
| 8.Y00062 | VFR2026-G18 | G1/8 | G1/8 | φ20 | 15 | 50 | 21 | 16 | 112 | 26 | 50 |
| 8.Y00063 | VFR2051-G18 | G1/8 | G1/8 | φ20 | 15 | 84 | 21 | 16 | 171 | 51 | 77 |

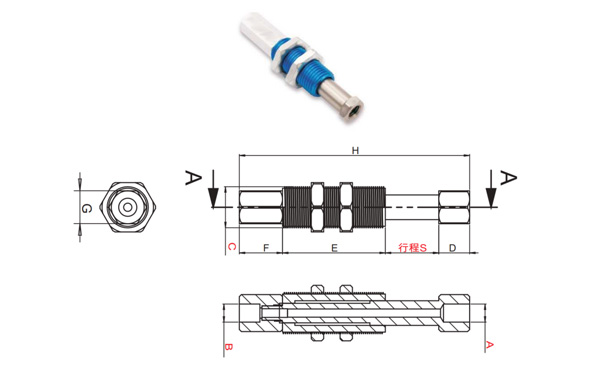

Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00074 | VFRT1011-M5 | M5 | M5 | M10*1 | 3 | 22 | 17 | 8 | 53 | 11 | 14 |
| 8.Y00327 | VFRT1021-M5 | M5 | M5 | M10*1 | 3 | 41 | 17 | 8 | 82 | 21 | 26 |
| 8.Y00075 | VFRT1421-G18 | G1/8 | G1/8 | M14*1 | 12 | 40 | 20 | 12 | 93 | 21 | 32 |
| 8.Y00381 | VFRT1621-G18 | G1/8 | G1/8 | M16*1 | 12 | 40 | 20 | 12 | 93 | 21 | 36 |
| 8.Y00328 | VFRT1436-G18 | G1/8 | G1/8 | M14*1 | 12 | 60 | 20 | 12 | 128 | 36 | 60 |
| 8.Y00382 | VFRT1636-G18 | G1/8 | G1/8 | M16*1 | 12 | 60 | 20 | 12 | 128 | 36 | 65 |
| 8.Y00076 | VFRT2026-G18 | G1/8 | G1/8 | M20*1 | 15 | 50 | 21 | 16 | 112 | 26 | 70 |
| 8.Y00077 | VFRT2051-G18 | G1/8 | G1/8 | M20*1 | 15 | 84 | 21 | 16 | 171 | 51 | 104 |
