Double Action Adsorption Fittings
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00451 | VFGD30-20 | G1/8 | φ20 | 27 | 27 | G1/8 | 32 | φ30 | 95 | M5 | 40 | M4 | 20 | 198.2 |
Suction Stems
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00319 | VFMT-20M14-G18 | G1/8 | G1/8 | M14 x 1.0 | 40 | 22 | 49 | 14 | 109 | 38 | 20 | 97 |
| 8.Y00320 | VFMT-40M14-G18 | G1/8 | G1/8 | M14 x 1.0 | 40 | 22 | 64 | 14 | 144 | 50 | 40 | 123 |

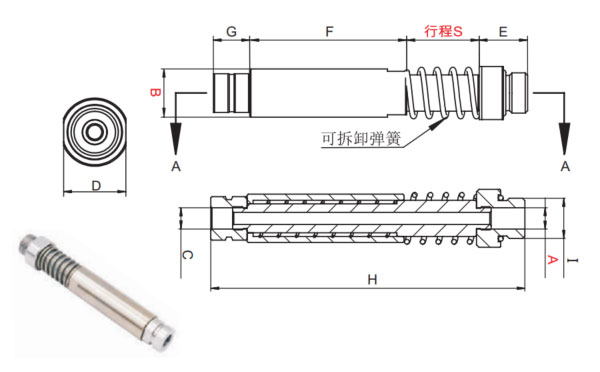

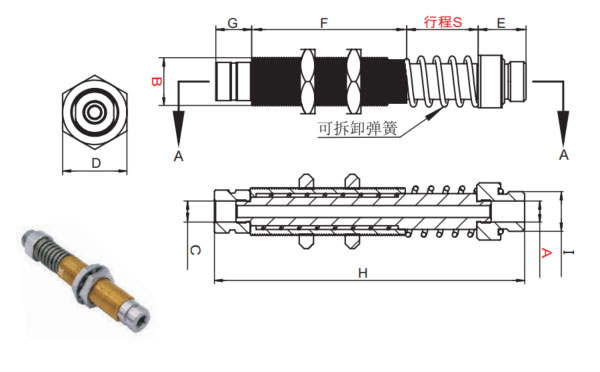

Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00409 | VFHT-30M20-G38F-G18M | G1/8 | M20*1 | G1/8 | 27 | 20 | 65 | 15 | 130 | G3/8 | 30 | 260 |
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00410 | VFH-30M20-G38F-G18M | G1/8 | φ20 | G1/8 | 22 | 20 | 65 | 15 | 130 | G3/8 | 30 | 235 |

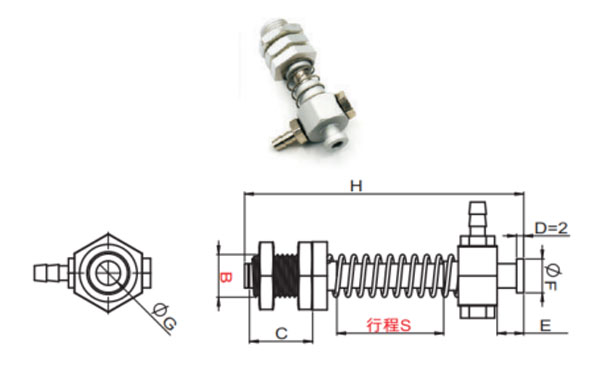

VFST

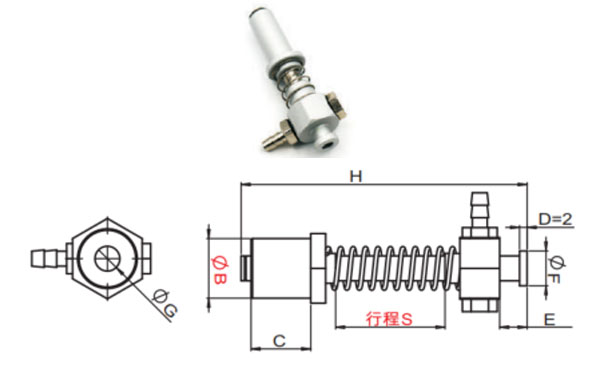

VFS
Installation Dimension (mm)
| PN | Model No. | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | H (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| 8.Y00283 | VFST-5M10 | M10*1 | 18 | 5.5 | φ7 | φ3.4 | 49 | 5 | 14 |
| 8.Y00284 | VFST-10M10 | M10*1 | 18 | 5.5 | φ7 | φ3.4 | 54 | 10 | 15 |
| 8.Y00285 | VFST-20M10 | M10*1 | 18 | 5.5 | φ7 | φ3.4 | 64 | 20 | 15 |
| 8.Y00286 | VFST-30M10 | M10*1 | 18 | 5.5 | φ7 | φ3.4 | 74 | 30 | 16 |
| 8.Y00287 | VFS-0508 | φ8 | 18 | 5.5 | φ7 | φ3.4 | 49 | 5 | 9 |
| 8.Y00288 | VFS-0512 | φ12 | 18 | 5.5 | φ7 | φ3.4 | 49 | 5 | 13 |
| 8.Y00289 | VFS-1008 | φ8 | 18 | 5.5 | φ7 | φ3.4 | 54 | 10 | 9 |
| 8.Y00007 | VFS-1012 | φ12 | 18 | 5.5 | φ7 | φ3.4 | 54 | 10 | 14 |
| 8.Y00290 | VFS-2008 | φ8 | 18 | 5.5 | φ7 | φ3.4 | 64 | 20 | 10 |
| 8.Y00008 | VFS-2012 | φ12 | 18 | 5.5 | φ7 | φ3.4 | 64 | 20 | 14 |
| 8.Y00291 | VFS-3008 | φ8 | 18 | 5.5 | φ7 | φ3.4 | 74 | 30 | 11 |
| 8.Y00292 | VFS-3012 | φ12 | 18 | 5.5 | φ7 | φ3.4 | 74 | 30 | 15 |
| 8.Y00293 | VFMT-5M12 | M12*1 | 18 | 9 | φ11 | φ4.6 | 52.5 | 5 | 20 |
| 8.Y00294 | VFMT-10M12 | M12*1 | 18 | 9 | φ11 | φ4.6 | 57.5 | 10 | 21 |
| 8.Y00295 | VFMT-20M12 | M12*1 | 18 | 9 | φ11 | φ4.6 | 67.5 | 20 | 22 |
| 8.Y00296 | VFMT-30M12 | M12*1 | 18 | 9 | φ11 | φ4.6 | 77.5 | 30 | 24 |
| 8.Y00297 | VFM-0512 | φ12 | 18 | 9 | φ11 | φ4.6 | 52.5 | 5 | 15 |
| 8.Y00298 | VFM-0520 | φ20 | 18 | 9 | φ11 | φ4.6 | 52.5 | 5 | 29 |
| 8.Y00299 | VFM-1012 | φ12 | 18 | 9 | φ11 | φ4.6 | 57.5 | 10 | 16 |
| 8.Y00300 | VFM-1020 | φ20 | 18 | 9 | φ11 | φ4.6 | 57.5 | 10 | 29 |
| 8.Y00301 | VFM-2012 | φ12 | 18 | 9 | φ11 | φ4.6 | 67.5 | 20 | 18 |
| 8.Y00302 | VFM-2020 | φ20 | 18 | 9 | φ11 | φ4.6 | 67.5 | 20 | 31 |
| 8.Y00303 | VFM-3012 | φ12 | 18 | 9 | φ11 | 4.6 | 77.5 | 30 | 19 |
| 8.Y00304 | VFM-3020 | φ20 | 18 | 9 | φ11 | φ4.6 | 77.5 | 30 | 32 |
