The Adsorption of Pneumatic Fittings
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | I (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.Y00207 | VFG20-10 | M5 | φ20 | φ12 | 19 | 18 | M5 | 50 | M5 | 10 | 35 |
| 8.Y00337 | VFG20-20 | M5 | φ20 | φ12 | 19 | 18 | M5 | 65 | M5 | 20 | 45 |
| 8.Y00338 | VFG30-20 | G1/8 | φ30 | φ20 | 27 | 27 | G1/8 | 72 | G1/8 | 20 | 70 |
Suction Stems
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.Y00026 | VFRS-20M10-M5 | M5 | M10*1 | M5 | 14 | 7 | 36 | 10 | 73.5 | 20 | 27 |
| 4.Y00023 | VFRS-20M16-G18 | G1/8 | M16*1 | G1/8 | 21 | 4 | 36 | 15 | 77 | 20 | 76 |
Installation Dimension (mm)

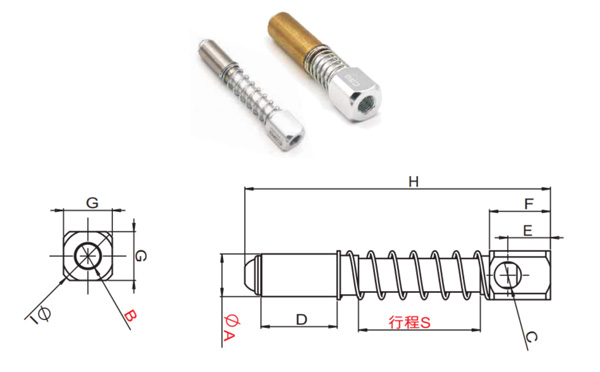

| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | S (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.Y01452 | VFM-4014-G18 | φ14 | G1/8 | G1/8 | 25 | 14 | 20 | 16 | 100 | φ20 | 40 | 48 |
| 1.Y01451 | VFM-2020-G14 | φ20 | G1/4 | G1/8 | 48 | 15 | 26 | 22 | 113 | φ27 | 20 | 136 |
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| 1.Y01453 | VFL-20M17-G18 | 20 | M17*1 | G1/8 | 27 | 64 | 20 | G1/8 | 119 |
