Mounting Bracket for Vacuum Cup

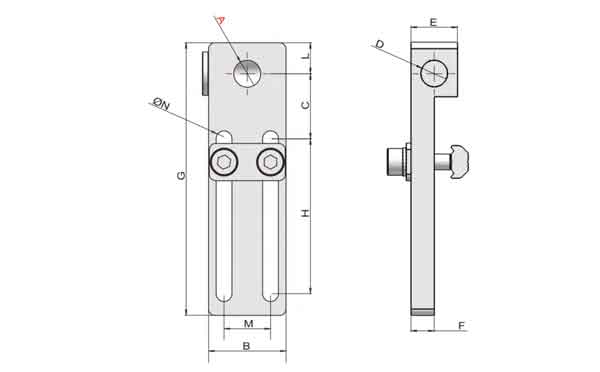

Product Parameters
| PN | 7.Y00328 | 7.Y00238 | 7.Y00239 |
|---|---|---|---|
| Model No | SVC-M5 | SVC-G18 | SVC-G14 |
| A (mm) | M5 | G1/8 | G1/4 |
| B (mm) | 16 | 25 | 25 |
| C (mm) | 14 | 21 | 21 |
| D (mm) | M5 | G1/8 | G1/8 |
| E (mm) | 8 | 15 | 15 |
| F (mm) | 4 | 7.5 | 7.5 |
| G (mm) | 65 | 88 | 88 |
| H (mm) | 40 | 50 | 50 |
| L (mm) | 6 | 10 | 10 |
| M (mm) | 8 | 15 | 15 |
| N (mm) | φ4.2 | φ5.2 | φ5.2 |
| PEP2518 | √ | √ | √ |
| PEP2525 | √ | √ | √ |
| PEP5025 | √ | √ | √ |
| PEP4040 | - | √ | √ |
| PEP3030 | √ | √ | √ |
| Accessories Selection | |||
| Screws | PTC-M4L12*2 | PTC-M5L16*2 | PTC-M5L16*2 |
| Single hole Shim | PTS-M4*2 | PTS-M5*2 | PTS-M5*2 |
| T-Nuts | PTN-M4P8*1 | PTN-PTN-M5P15*1 | PTN-M5P15*1 |
| Double Holes Shim | PTD-M4P8*1 | PTD-M5P15*1 | PTD-M5P15*1 |
| Weight (g) | 20 | 60 | 60 |
