EOAT Parts
Direct Connector For Vacuum Cup

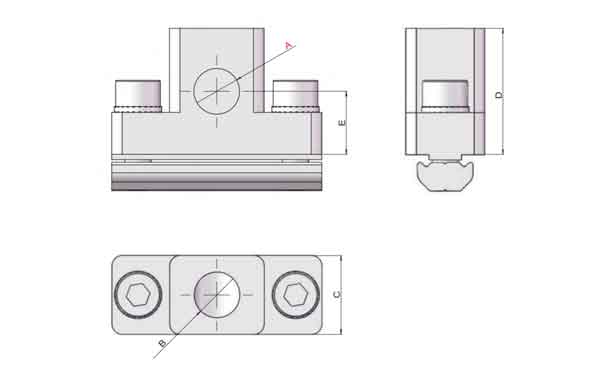

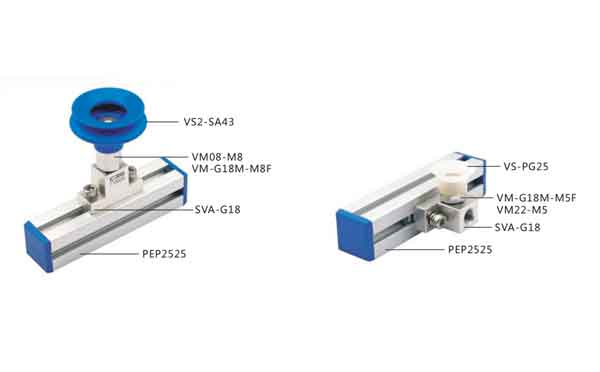

Product Parameters

PN 7.Y00235 7.Y00237
Model No SVA-G18 SVA-G14
A (mm) G1/8 G1/4
B (mm) G1/8 G1/8
C (mm) 15 15
D (mm) 24 24
E (mm) 12 10
PEP2518 √ √
PEP2525 √ √
PEP5025 √ √
PEP4040 √ √
PEP3030 √ √
Accessories Selection
Screws PTC-M5L16*2 PTC-M5L16*2
Single hole Shim PTS-M5*2 PTS-M5*2
T-Nuts PTN-M5P30*1 PTN-M5P30*1
Weight (g) 42 40

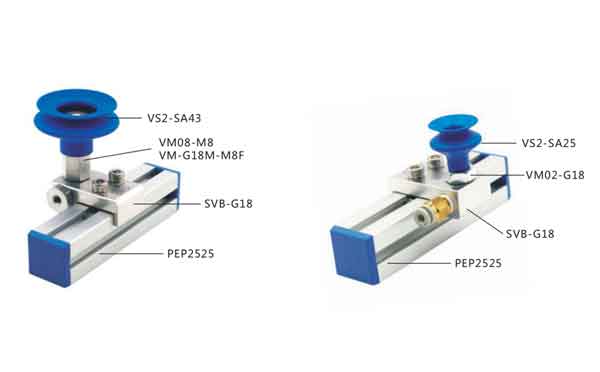

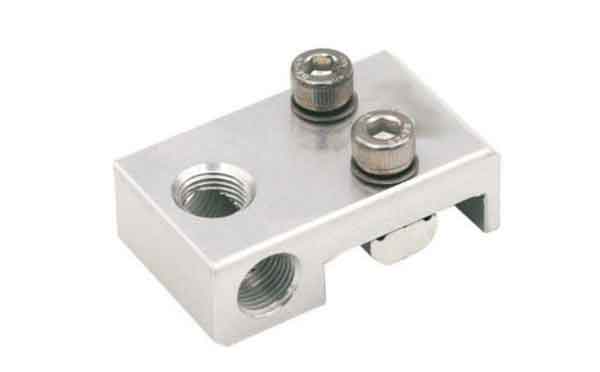

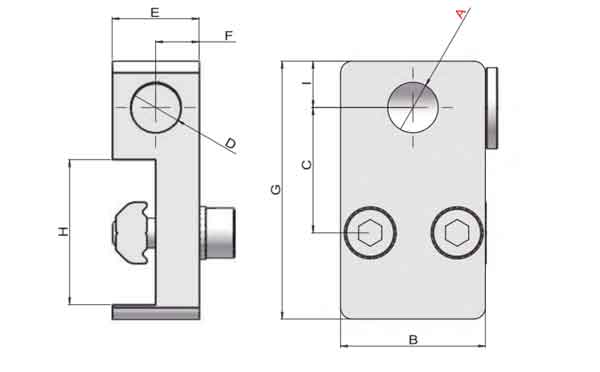

Product Parameters

PN 7.Y00242 7.Y00244 7.Y00243
Model No. SVB-M5 SVB-G18 SVB-G14
A (mm) M5 G1/8 G1/4
B (mm) 16 25 25
C (mm) 13.5 21.5 21.5
D (mm) M5 G1/8 G1/8
E (mm) 8 15 15
F (mm) 4 7.5 7.5
G (mm) 29 44.5 46.5
H (mm) 18 25 25
I (mm) 4.3 8 10
PEP2518 - √ √
PEP2525 - √ √
PEP5025 - √ √
Accessories Selection
Screws PTC-M4L12*2 PTC-M5L16*2 PTC-M5L16*2
Single Hole Shim PTS-M4*2 PTS-M5*2 PTS-M5*2
T-Nuts PTN-M4P8*1 PTN-M5P15*1 PTN-M5P15*1
Weight (g) 15 45 45
