EOAT Parts
Fixed Bracket

Product Parameters

PN Model No. Weight (g)
7.Y01051 SMBU9-M10 21

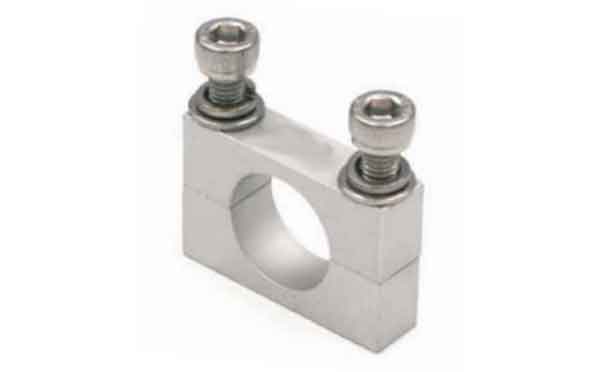

Bracket

Product Parameters

PN Model No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (g)
7.Y00091 SMBK1-8T10 φ8 10 16 φ5.5 30 20 20
7.Y00092 SMBK1-12T10 φ12 10 16 φ5.5 30 20 14
7.Y00093 SMBK1-20T10 φ20 10 27 φ6.5 40 30 36
7.Y00094 SMBK1-8T16 φ8 16 16 φ6.5 30 20 32
7.Y00095 SMBK1-12T16 φ12 16 16 φ4.5 30 20 20
7.Y00096 SMBK1-20T16 φ20 16 27 φ6.5 40 30 48

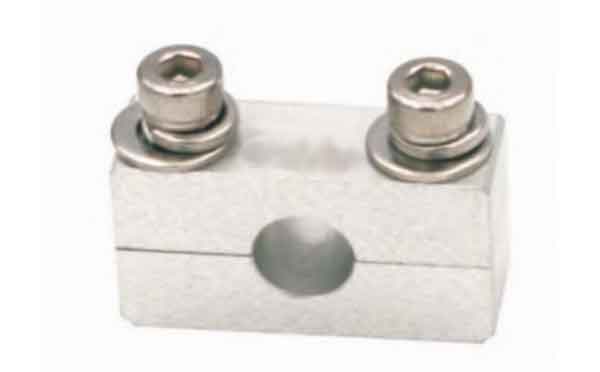

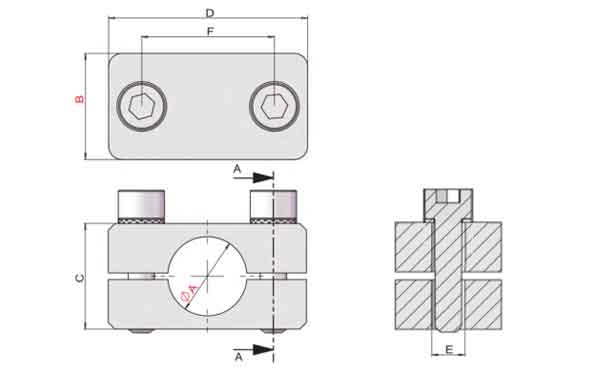

Slide Bracket

Product Parameters

PN Model No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (g)
7.Y00064 SMBS-8T10 φ8 10 16 30 M4 20 16
7.Y00065 SMBS-12T10 φ12 10 16 30 M4 20 15
7.Y00066 SMBS-20T10 φ20 10 25 40 M6 30 33
7.Y00067 SMBS-8T16 φ8 16 16 30 M6 20 29
7.Y00001 SMBS-12T16 φ12 16 16 30 M6 20 29
7.Y00068 SMBS-20T16 φ20 16 25 40 M6 30 44

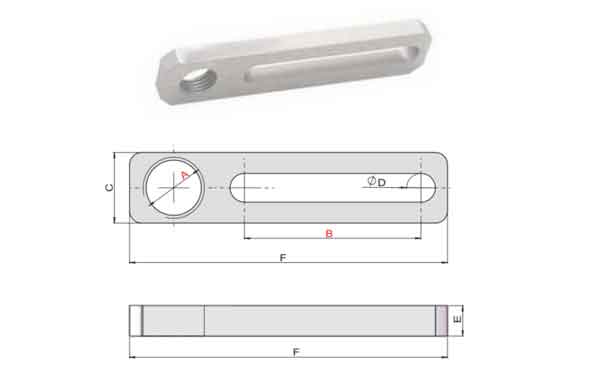

Product Parameters

PN Model No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (g)
7.Y00119 SCF3-40M10 M10*1 40 16 6.5 5 70 10
7.Y00120 SCF3-40M12 M12*1 40 16 6.5 5 72 10
7.Y00121 SCF3-40M17 M17*1 40 25 6.5 5 80 20
7.Y00133 SCF3-70M10 M10*1 70 16 6.5 5 100 14
7.Y00134 SCF3-70M12 M12*1 70 16 6.5 5 102 14
7.Y00135 SCF3-70M17 M17*1 70 25 6.5 5 110 28

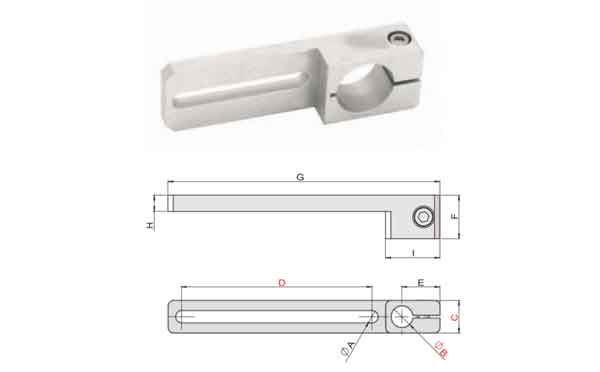

Product Parameters

PN Model No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) Weight (g)
7.Y00122 SCF4-0840W12 4.5 φ8 12 40 14 16 70 6 20 14
7.Y00123 SCF4-0840W16 6.5 φ8 16 40 14 16 70 6 20 20
7.Y00004 SCF4-1240W16 6.5 φ12 16 40 16 16 75 6 25 21
7.Y00124 SCF4-2040W25 6.5 φ20 16 40 20 16 86 6 34 39
7.Y00136 SCF4-0870W12 4.5 φ8 12 70 14 16 100 6 20 18
7.Y00137 SCF4-0870W16 6.5 φ8 16 70 14 16 100 6 20 25
7.Y00138 SCF4-1270W16 6.5 φ12 16 70 16 16 105 6 25 25
7.Y00139 SCF4-2070W25 6.5 φ20 25 70 20 16 116 6 34 49

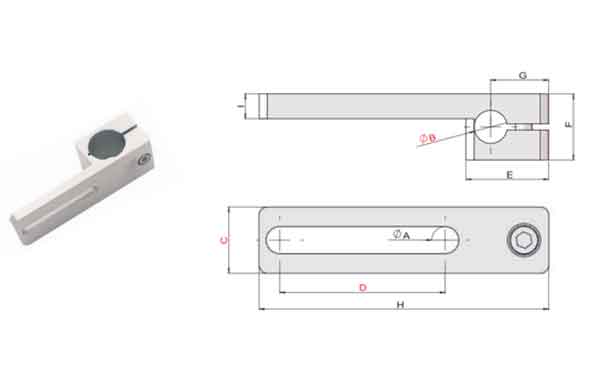

Product Parameters

PN Model No. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) Weight (g)
7.Y00125 SCF0840W16 6.5 φ8 16 40 20 16 14 70 6 20
7.Y00126 SCF5-0840W12 4.5 φ8 12 40 20 16 14 70 6 20
7.Y00127 SCF5-1240W16 6.5 φ12 16 40 25 16 16 75 6 20
7.Y00128 SCF5-2040W25 6.5 φ20 25 40 34 25 20 86 6 53
7.Y00140 SCF5-0870W16 6.5 φ8 16 70 20 16 14 100 6 25
7.Y00141 SCF5-0870W12 4.5 φ8 12 70 20 16 14 100 6 19
7.Y00142 SCF5-1270W16 6.5 φ12 16 70 25 16 16 105 6 25
7.Y00143 SCF5-2070W25 6.5 φ20 25 70 34 25 20 116 6 48
