Cross Connection Block
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00192 | SMBT2-1212 | φ12 | φ12 | 33 | 28 | 28 | 11 |
| 7.Y00185 | SMBT2-2020 | φ20 | φ20 | 48 | 42 | 42 | 30 |

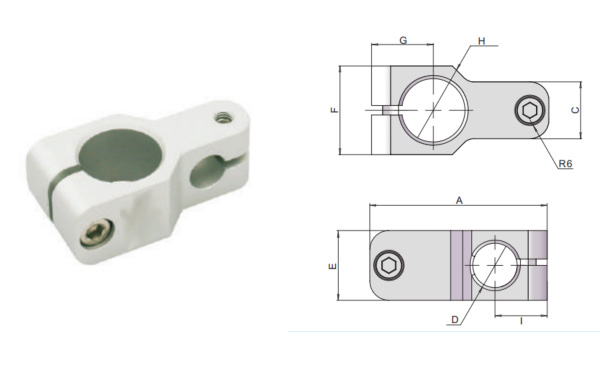

Product Parameters
| PN | Model No. | A (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00329 | SCD-2010 | 54 | 14 | φ10 | 19 | 28 | 19.5 | φ20 | 14.5 | 41 |
| 7.Y00330 | SCD-2014 | 56 | 18 | φ14 | 22 | 28 | 19.5 | φ20 | 16.5 | 51 |
| 7.Y01049 | SCD-3020 | 75 | 18 | φ14 | 25 | 35 | 26 | φ30 | 20 | 78 |

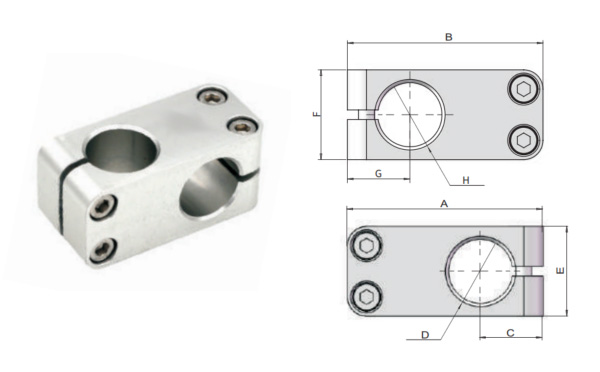

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00233 | SCD-2020 | 61 | 61 | 19.5 | φ20 | 28 | 28 | 19.5 | φ20 | 85 |
| Y01050 | SCD-3030 | 84 | 84 | 26 | φ30 | 35 | 35 | 26 | φ30 | 98 |
Application Demonstration

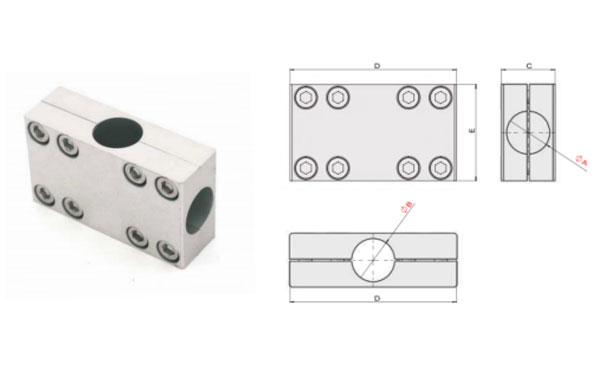

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00047 | SMBT3-2020 | φ20 | φ20 | 25 | 78 | 45 | 170 |
Automation Application Demonstration
