Rotation Bracket

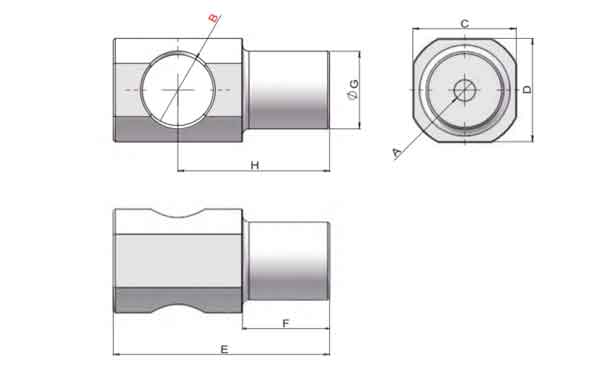

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00099 | SMBR2-M10 | M4 | M10 | 14 | 14 | 26.5 | 11.5 | φ8 | 19 | 6 |
| 7.Y00100 | SMBR2-M12 | M4 | M12 | 16 | 16 | 33.5 | 13.5 | φ12 | 23.5 | 12 |

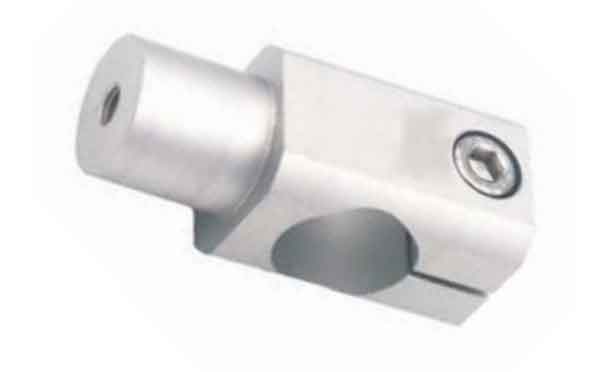

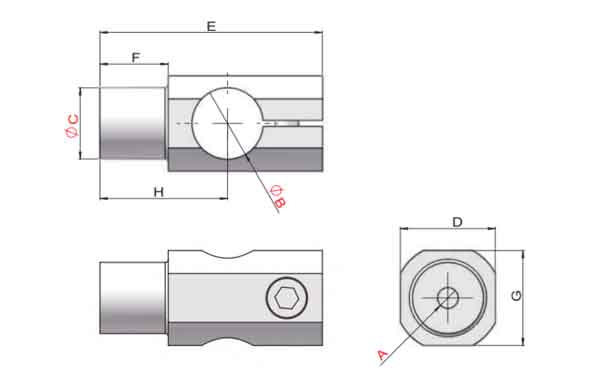

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00103 | SMBR4-0808M4 | M4 | φ8 | φ8 | 12 | 32.5 | 11.5 | 12 | 17.5 | 7 |
| 7.Y00110 | SMBR4-1208M4 | M4 | φ12 | φ8 | 16 | 37.5 | 11.5 | 16 | 21.5 | 13 |
| 7.Y00019 | SMBR4-1212M4 | M4 | φ12 | φ12 | 16 | 39.5 | 13.5 | 16 | 23.5 | 15 |
| 7.Y00268 | SMBR4-1212M4L | M4 | φ12 | φ12 | 16 | 55 | 29 | 16 | 39 | 20 |
| 7.Y00461 | SMBR4-1420M6 | M6 | φ14 | φ20 | 25 | 60 | 20 | 25 | 37 | 70 |
| 7.Y00007 | SMBR4-2020M6 | M6 | φ20 | φ20 | 25 | 60 | 20 | 25 | 37 | 59 |
| 7.Y00206 | SMBR4-2020M6L | M6 | φ20 | φ20 | 25 | 85 | 45 | 25 | 62 | 81 |

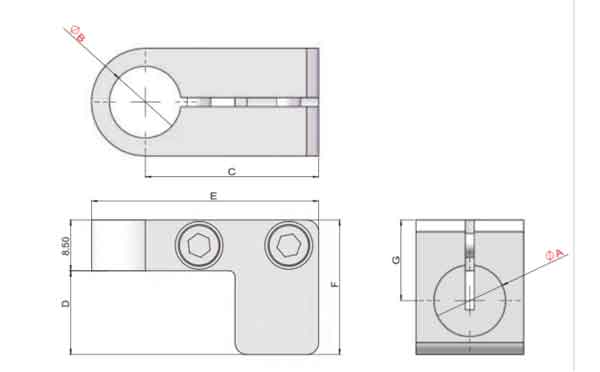

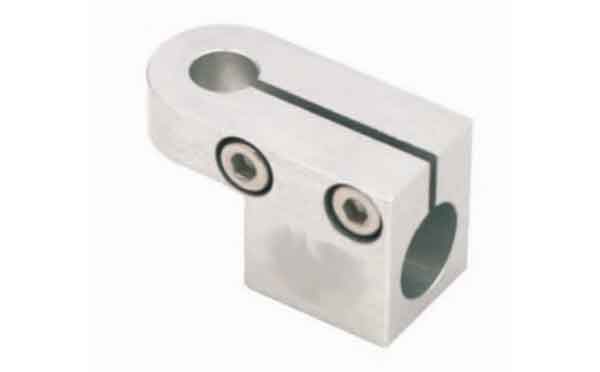

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| 7.Y00111 | SMBR5-1208 | φ8 | φ8 | 29 | 11.5 | 36 | 20 | 13 | 16 |
| 7.Y00104 | SMBR5-0808 | φ8 | φ8 | 29 | 11.5 | 36 | 20 | 13 | 16 |
| 7.Y00112 | SMBR5-1212 | φ12 | φ12 | 29 | 14 | 38 | 22.5 | 13.5 | 18 |

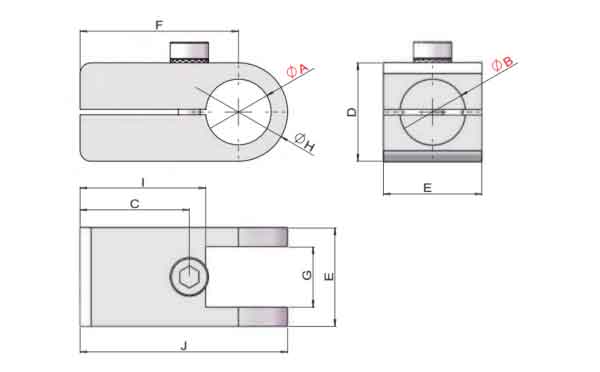

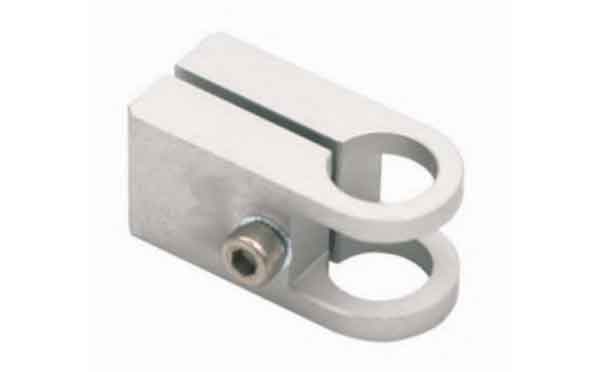

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00113 | SMBR7-0808 | φ8 | φ8 | 16 | 15 | 15 | 25 | 10 | 15 | 21 | 32.5 | 13 |
| 7.Y00114 | SMBR7-1212 | φ12 | φ12 | 20 | 18 | 18 | 29 | 11 | 18 | 23 | 38 | 18 |

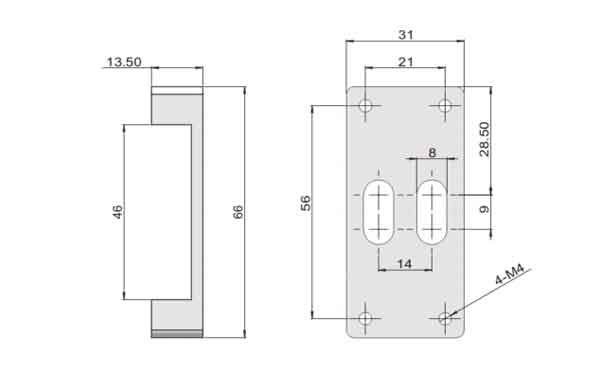

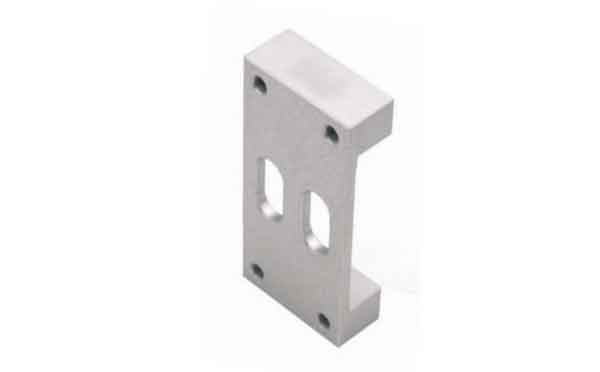

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00063 | SMBR-46 | 31 |

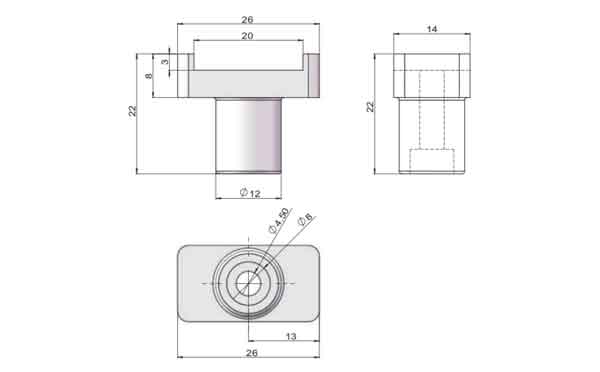

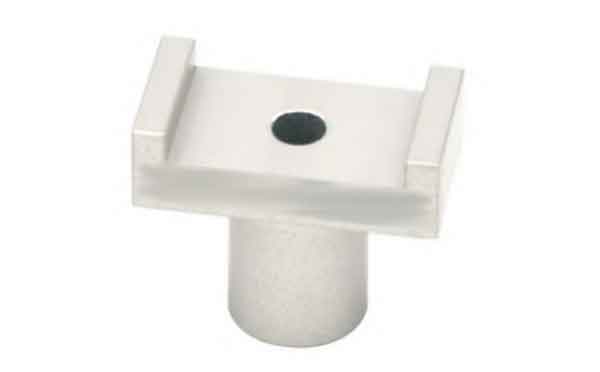

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00098 | SMBR1-12 | 9 |
