Swing Block
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00048 | SMBT4-G1820 | φ20 | G1/8 | 19 | 14 | 28 | 11 |

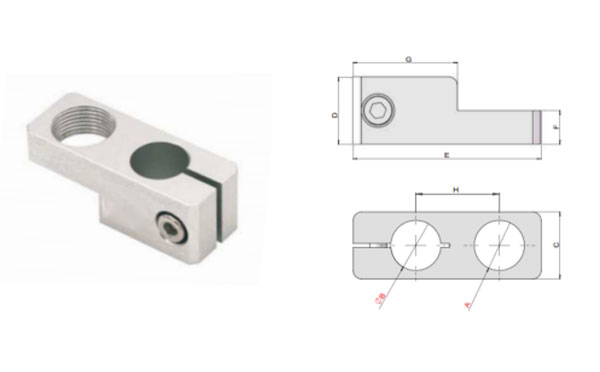

Connector SSW
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00028 | SMBT1-M1412 | M14 | φ12 | 16 | 16 | 45 | 8 | 25 | 20 | 16 |

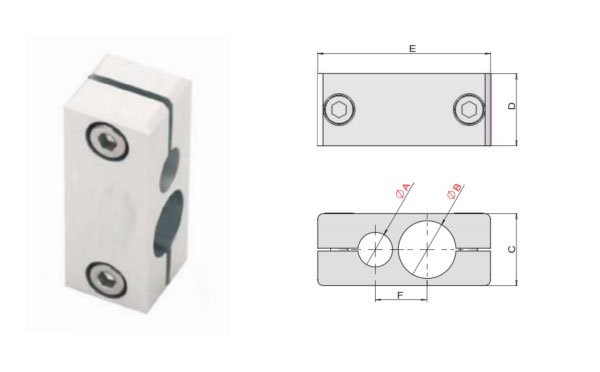

Parallel Connector
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 7.Y00042 | SMBP-0808 | φ8 | φ8 | 12 | 12 | 35 | 10 | 11 |
| Y00043 | SMBP-0812 | φ8 | φ12 | 16 | 16 | 43 | 12 | 23 |
| Y00044 | SMBP-1212 | φ12 | φ12 | 16 | 16 | 44 | 44 | 21 |
| Y00045 | SMBP-2012 | φ20 | φ12 | 25 | 25 | 60 | 18 | 75 |
| Y00046 | SMBP-2020 | φ20 | φ20 | 25 | 25 | 66 | 24 | 71 |

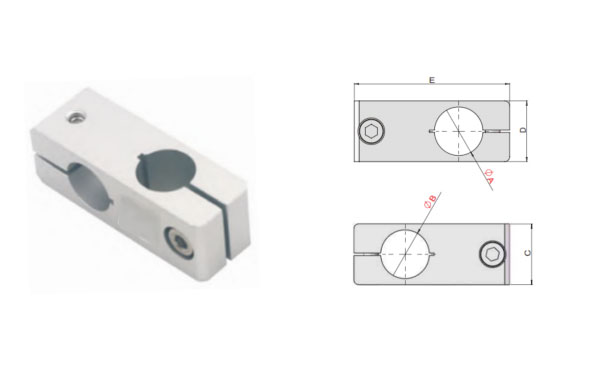

Cross Connector
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00025 | SMBT-0808 | φ8 | φ8 | 12 | 12 | 35 | 10 |
| 7.Y00026 | SMBT-1208 | φ12 | φ8 | 12 | 16 | 43 | 16 |
| 7.Y00020 | SMBT-1212 | φ12 | φ12 | 16 | 16 | 47 | 22 |
| 7.Y00794 | SMBT-1214 | φ12 | φ14 | 18 | 18 | 48 | 29 |
| 7.Y00027 | SMBT-2012 | φ20 | φ12 | 25 | 25 | 59 | 72 |
| 7.Y00005 | SMBT-2020 | φ20 | φ20 | 25 | 25 | 64 | 68 |

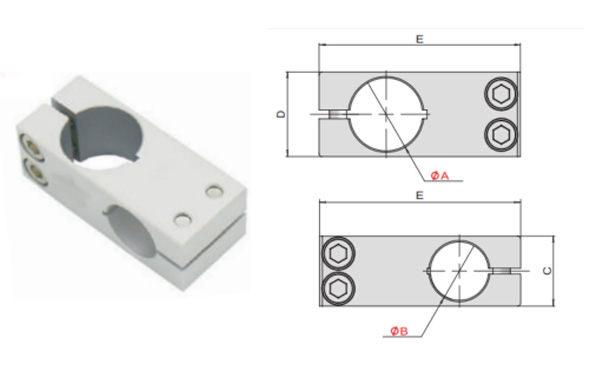

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y01002 | SMBT-1414 | φ14; | φ14 | 18 | 18 | 46 | 25 |
| 7.Y00998 | SMBT-2520 | φ25 | φ20 | 24 | 29 | 69 | 79 |
| 7.Y00999 | SMBT-2525 | φ25 | φ25 | 30 | 30 | 78 | 114 |

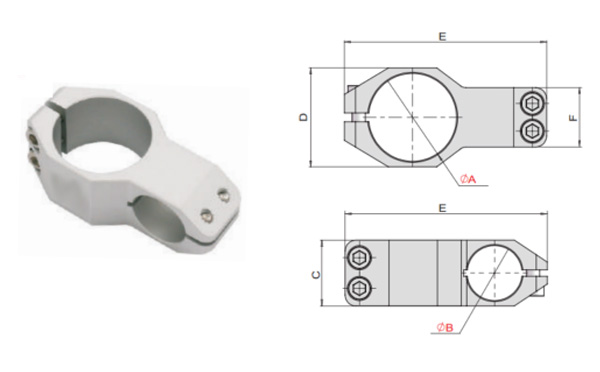

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 7.Y01059 | SMBT-4020 | φ40 | φ20 | 25 | 45 | 88 | 27 | 101 |
| 7.Y01004 | φ40 | φ25 | 30 | 45 | 92 | 27 | 107 |

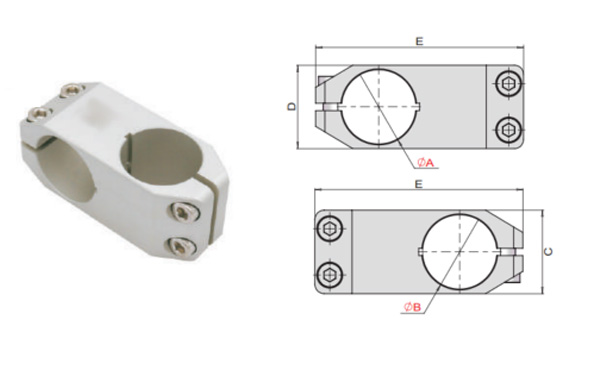

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 7.Y01003 | SMBT-4040 | φ40 | φ40 | 45 | 45 | 112 | 112 | 259 |
Automation Application Demonstration
