Gripper Installation Bracket
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00740 | SMBM-10 | φ3.2 | φ5 | φ2 | 23 | 16.4 | 12 | 18 | 14 | 4 | M10*1 | 5 |
| 7.Y00741 | SMBM-16 | φ4.2 | φ6.5 | φ3 | 30.6 | 23.6 | 15 | 22 | 15 | 5 | M12*1 | 10 |
| 7.Y00728 | SMBM-20 | φ5.5 | φ6.5 | φ4 | 42 | 27.6 | 18 | 32 | 15 | 5 | M12*1 | 14 |
| 7.Y00739 | SMBM-25 | φ6.5 | φ7 | φ5 | 52 | 33.6 | 22 | 40 | 18 | 6 | M17*1 | 27 |
| 7.Y00738 | SMBM-32 | φ6.5 | φ7 | φ5 | 60 | 40 | 26 | 46 | 18 | 6 | M17*1 | 36 |
| 7.Y00737 | SMBM-40 | φ8.5 | φ16 | φ5 | 72 | 48 | 32 | 56 | 20 | 8 | M27*1 | 67 |

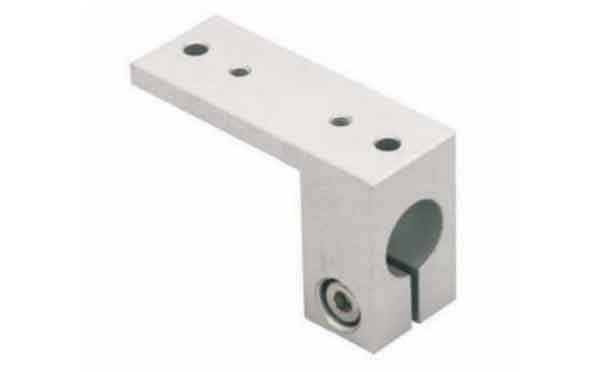

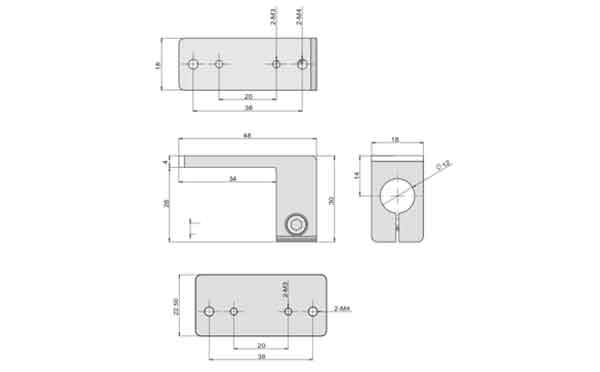

Bracket L12
Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00081 | SMBT9-12 | 23 |

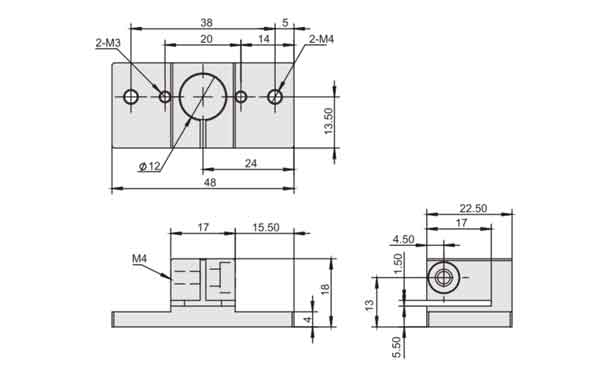

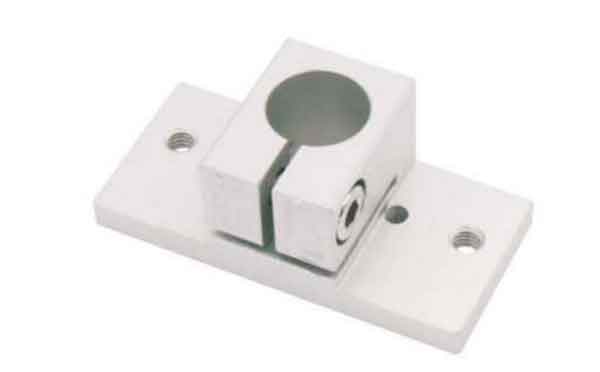

Bracket T
Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00082 | SMBU-12 | 21 |

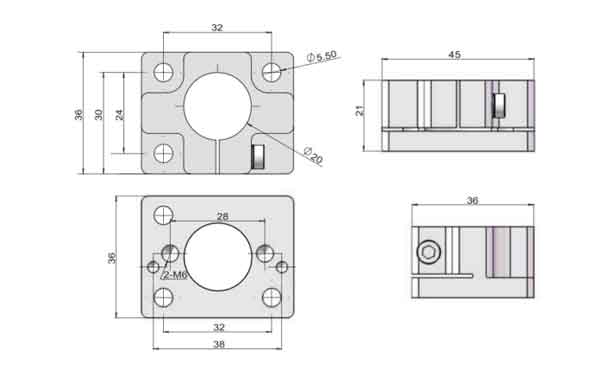

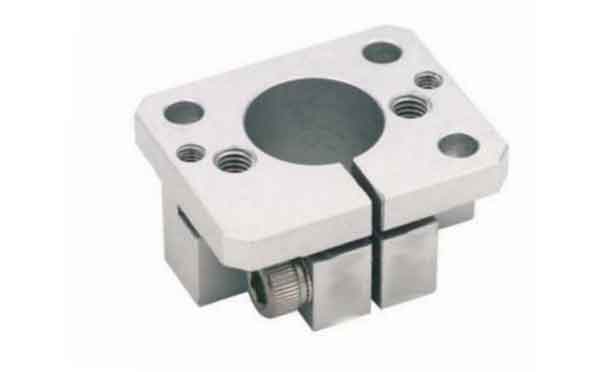

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00255 | SMBU2-20 | 49 |

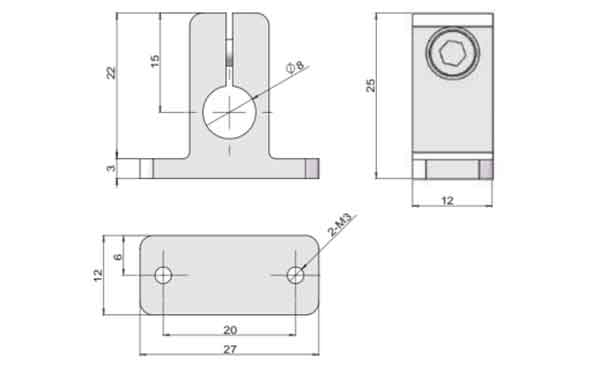

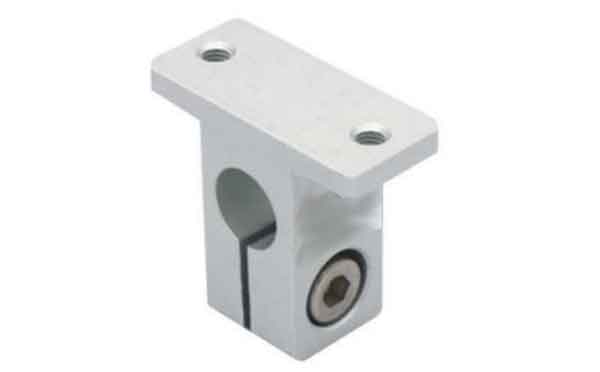

Bracket TV
Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00088 | SMBU6-8 | 10 |

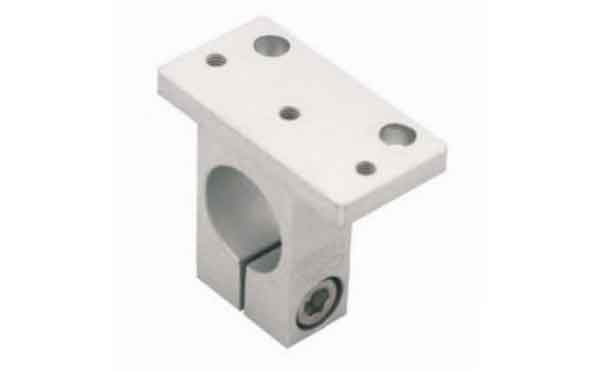

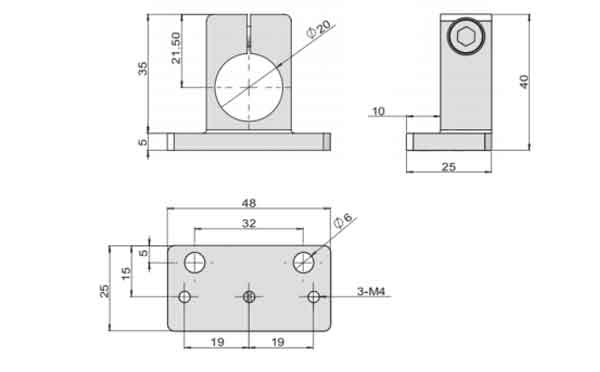

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00090 | SMBU8-20 | 39 |

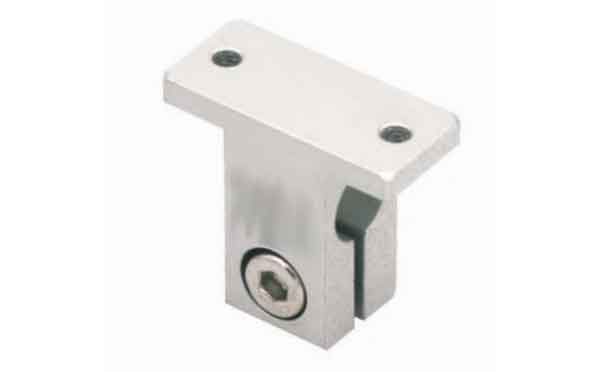

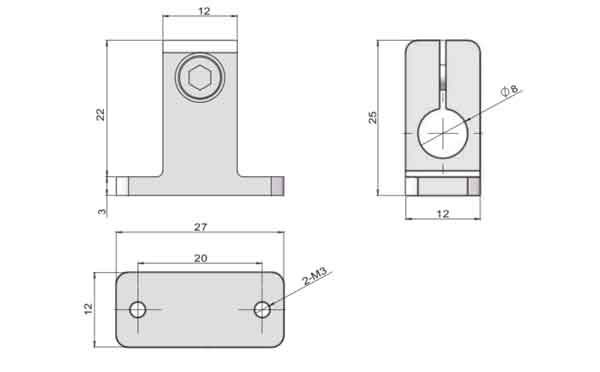

Bracket TH
Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00085 | SMBU3-8 | 10 |

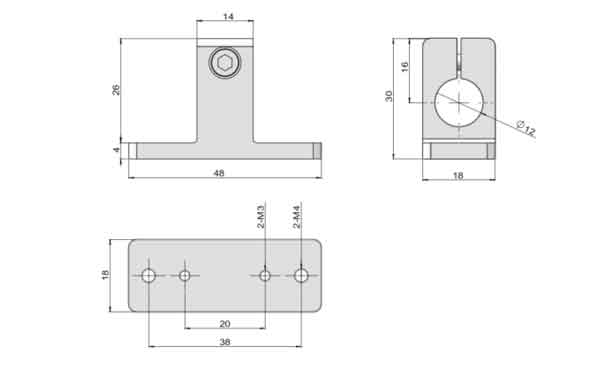

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00086 | SMBU4-12 | 22 |

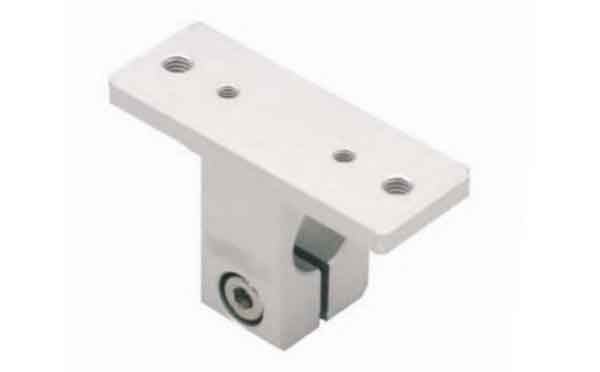

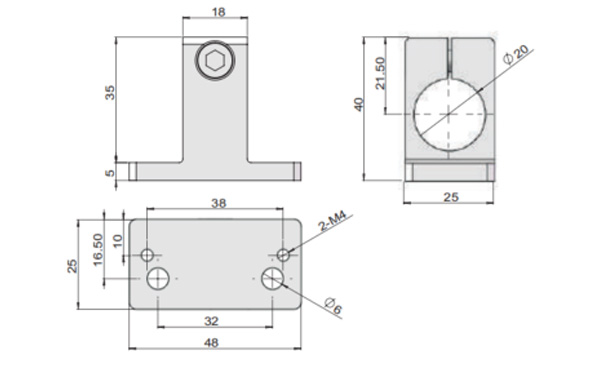

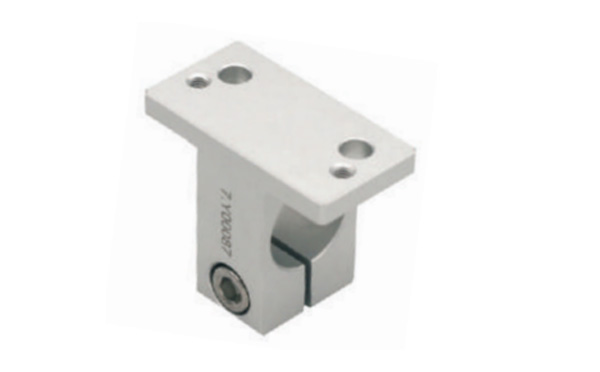

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00087 | SMBU5-20 | 44 |
Bracket TV
Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00088 | SMBU6-8 | 10 |

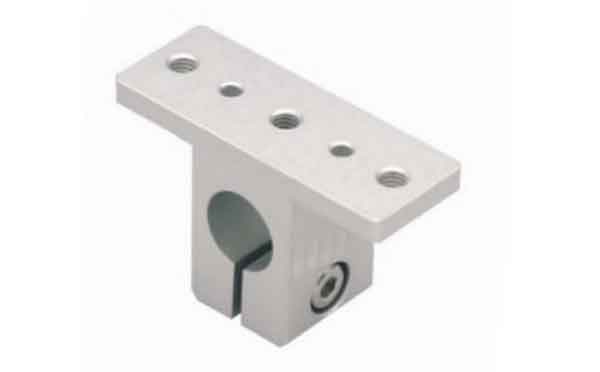

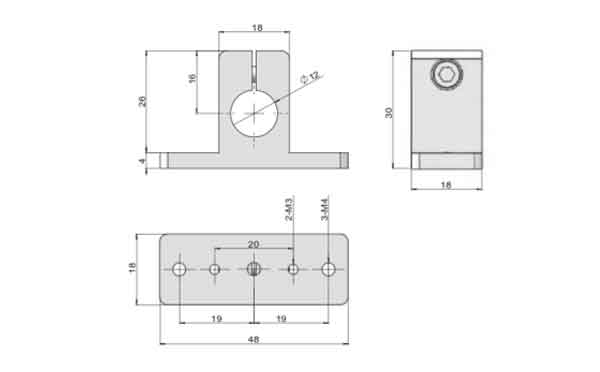

Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00089 | SMBU7-12 | 26 |
