Access Robot Bracket
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00051 | SMBH1-8M6 | φ8 | 14 | 35 | 12 | φ5.5 | 15 |
| 7.Y00052 | SMBH1-8M6 | φ8 | 14 | 35 | 12 | φ6.5 | 12 |
| 7.Y00053 | SMBH1-12M5 | φ12 | 20 | 39 | 16 | φ5.5 | 30 |
| 7.Y00002 | SMBH1-12M6 | φ12 | 20 | 39 | 16 | φ6.5 | 25 |
| 7.Y00054 | SMBH1-12M8 | φ12 | 20 | 45 | 25 | φ9 | 42 |
| 7.Y00055 | SMBH1-20M6 | φ20 | 20 | 50 | 25 | φ6.5 | 48 |
| 7.Y00056 | SMBH1-20M8 | φ20 | 20 | 50 | 25 | φ9 | 51 |
Product Parameters

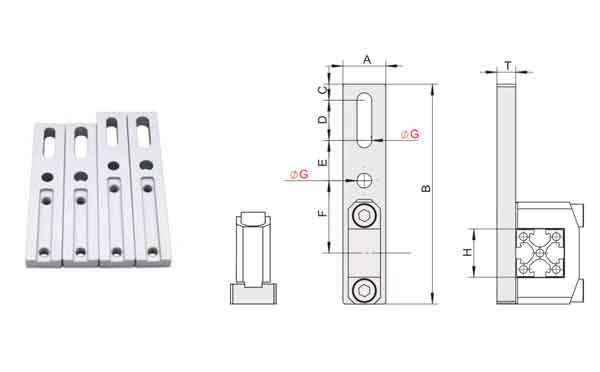

| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | T (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00869 | SMBE7-18M5 | 16 | 82 | 6 | 15 | 15 | 27 | φ5.5 | 18 | 7 | 20.5 |
| 7.Y00870 | SMBE7-18M6 | 16 | 82 | 6 | 15 | 15 | 27 | φ6.5 | 18 | 7 | 20 |
| 7.Y00871 | SMBE7-25M5 | 16 | 90 | 7 | 15 | 15 | 30.5 | φ5.5 | 25 | 7 | 22.5 |
| 7.Y00872 | SMBE7-25M6 | 16 | 90 | 7 | 15 | 15 | 30.5 | φ6.5 | 25 | 7 | 22 |
Automation Application Demonstration
