T-Connector
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| 7.Y00029 | SMBF-0808 | φ8 | φ8 | 12 | 20 | 30 | M4 | 14 | 14 |
| 7.Y00030 | SMBF-0812 | φ8 | φ12 | 16 | 20 | 30 | M4 | 14 | 23 |
| 7.Y00031 | SMBF-1208 | φ12 | φ8 | 16 | 26 | 30 | M4 | 16 | 19 |
| 7.Y00032 | SMBF-1212 | φ12 | φ12 | 16 | 26 | 30 | M4 | 16 | 18 |
| 7.Y00033 | SMBF-1220 | φ12 | φ20 | 25 | 30 | 45 | M4 | 20 | 60 |
| 7.Y00034 | SMBF-2012 | φ20 | φ12 | 25 | 40 | 45 | M4 | 25 | 63 |
| 7.Y00035 | SMBF-2020 | φ20 | φ20 | 25 | 40 | 45 | M4 | 25 | 56 |

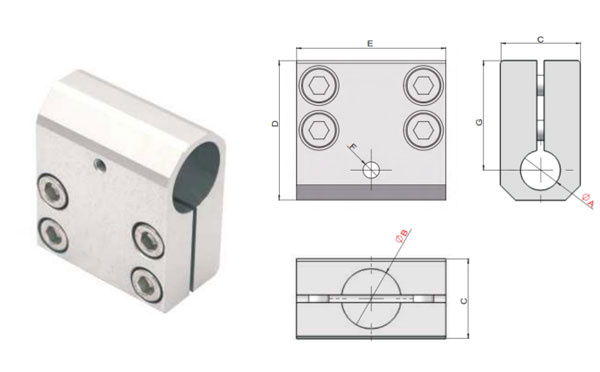

Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| 7.Y00036 | SMBF1-0808 | φ8 | φ8 | 12 | 28 | 26 | M4 | 22 | 15 |
| 7.Y00037 | SMBF1-0812 | φ8 | φ12 | 16 | 28 | 30 | M4 | 22 | 31 |
| 7.Y00038 | SMBF1-1208 | φ12 | φ8 | 16 | 28 | 30 | M4 | 25 | 29 |
| 7.Y00003 | SMBF1-1212 | φ12 | φ12 | 16 | 35 | 30 | M4 | 25 | 26 |
| 7.Y00039 | SMBF1-1220 | φ12 | φ20 | 25 | 44 | 45 | M4 | 34 | 88 |
| 7.Y00040 | SMBF1-2012 | φ20 | φ12 | 25 | 54 | 45 | M4 | 39 | 111 |
| 7.Y00041 | SMBF1-2020 | φ20 | φ20 | 25 | 51.5 | 45 | M4 | 39 | 78 |
