EOAT Parts
SGON Series Vacuum Cups
Vacuum Cups

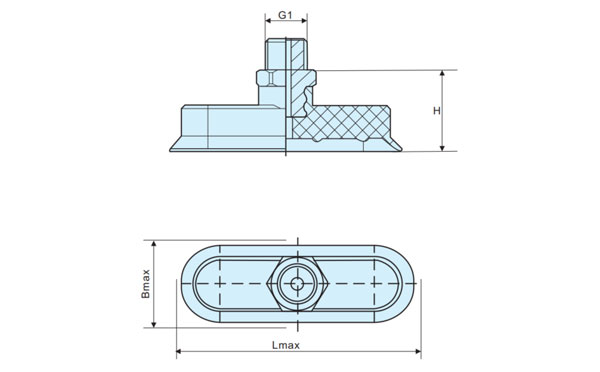

Dimensions

Model # Suction
(N)		 Inner Dia
(mm)		 G1
(mm)		 Bmax(S)
(mm)		 Lmax
(mm)		 H
(mm)		 NBR-60
(Black)		 SI-60
(Clear)		 HT1-60
(Blue)		 Weight
(g)
SGON-4 x 2-... 0.42 2 M3-M 2.5 4.5 8 1.Y13068 1.Y13079 1.Y13090 2
SGON-7 x 3.5-... 1.0 2 M3-M 4.5 7.5 8 1.Y13069 1.Y13080 1.Y13091 2
SGON-12 x 4-... 1.8 2 M5-M 5.0 13.0 18 1.Y13070 1.Y13081 1.Y13092 3
SGON-15 x 5-... 3.1 2 M5-M 5.5 15.5 17 1.Y13071 1.Y13082 1.Y13093 3
SGON-18 x 6-... 4.5 2 M5-M 7.0 18.5 17 1.Y13072 1.Y13083 1.Y13094 3
SGON-24 x 8-... 8.0 4 G1/8-M 9.0 24.5 17 1.Y13073 1.Y13084 1.Y13095 7
SGON-30 x 10-... 12.2 4 G1/8-M 11.5 30.5 17 1.Y13074 1.Y13085 1.Y13096 7
SGON-45 x 15-... 28.2 6 G1/4-M 16.5 46.0 26 1.Y13075 1.Y13086 1.Y13097 15
SGON-60 x 20-... 50.1 6 G1/4-M 22.0 61.0 26 1.Y13076 1.Y13087 1.Y13098 19
SGON-75 x 25-... 78.3 6 G1/4-M 27.5 77.0 26 1.Y13077 1.Y13088 1.Y13099 27
SGON-90 x 30-... 112.6 6 G1/4-M 33.0 92.5 26 1.Y13078 1.Y13089 - 35

Note: The suction specified above is the theoretical value when the vacuum degree is -0.6bar. For workpieces with smooth and dry surface and didn't take the tolerance into consideration.
