Fixing Plate with Adjustable Angle for EOAT Assembly
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | M (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.Y00637 | SFP-A60 | 60 | 85 | 40 | 10 | 40 | 12.5 | 76 | 12.5 | 25 | 30° | 3 |
| 7.Y00638 | SFP-A90 | 90 | 95 | 60 | 15 | 50 | 12.5 | 86 | 12.5 | 25 | 30° | 3 |
| 7.Y00639 | SFP-A70 | 70 | 100 | 50 | 10 | 40 | 20 | 90 | 20 | 40 | 27° | 3 |
Accessories Selection
| Model No. | Screws | Single Hole Shim | T-Nuts | Weight (g) |
|---|---|---|---|---|
| SFP-A60 | PTC-M5L12*4 | PTS-M5*4 | PTN-M5P40*2 | 130 |
| SFP-A90 | PTC-M5L12*5 | PTS-M5*5 | PTN-M5P50*1 | 215 |
| PTN-M5P60*1 | ||||
| PTN-M5*1 | ||||
| SFP-A70 | PTC-M5L12*4 | PTS-M5*4 | PTN-M5P40*1 | 175 |
| PTN-M5P50*1 |

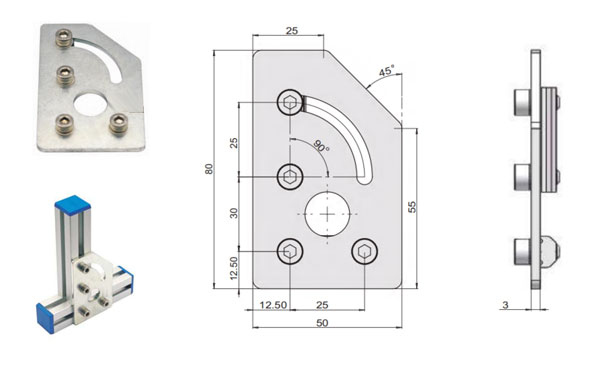

Accessories Selection
| PN | Model No. | QC-G... | T (mm) | Screws | Single Hole Shim | T-Nuts | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00640 | SFP-A50 | QC-G50 | 3 | PTC-M5L12*4 | PTS-M5*4 | PTN-M5P25*2 | 115 |
