Nipper Bracket
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 7.Y00075 | SCE3-N10 | φ36 | M6 | 40 | 75 | 45 | 30 | 246 |
| 7.Y00076 | SCE3-N20 | φ45 | M6 | 40 | 75 | 53 | 30 | 228 |
| 7.Y00077 | SCE3-N30 | φ56 | M6 | 40 | 86 | 63 | 30 | 267 |

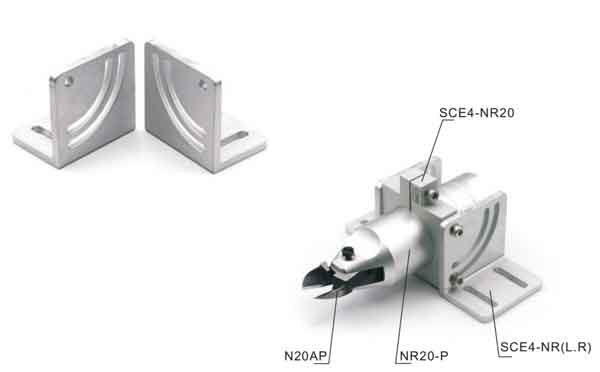

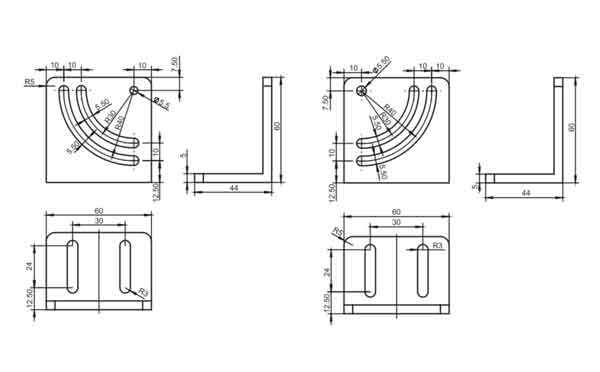

Gas Cut Bracket
Product Parameters
| PN | Model No. | Weight (g) |
|---|---|---|
| 7.Y00868 | SCE4-NR(L.R) | 65.5 |

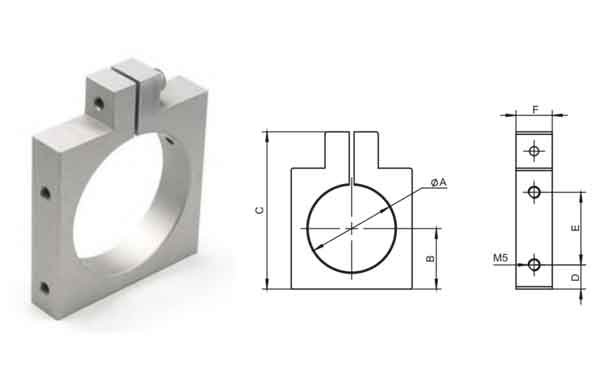

Gas Cut Fixation
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 7.Y00146 | SCE4-NR30 | 56 | 35 | 85 | 10 | 40 | 15 | 111 |
| 7.Y00147 | SCE4-NR20 | 45 | 30 | 75 | 10 | 40 | 15 | 93 |
| 7.Y00148 | SCE4-NR10 | 36 | 25 | 65 | 10 | 30 | 15 | 72 |
Adjustable Nipper Mounting Clamps
Product Parameters
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 7.Y00946 | SCE-NR20-D10 | φ45 | φ10 | 56.5 | 93 | 65 | 57.5 |
| 7.Y00947 | SCE-NR20-D12 | φ45 | φ12 | 56.5 | 93 | 65 | 55.5 |
| 7.Y00948 | SCE-NR30-D10 | φ56 | φ10 | 62.5 | 104.5 | 77 | 67.5 |
| 7.Y00949 | SCE-NR30-D12 | φ56 | φ12 | 62.5 | 104.5 | 77 | 65.5 |
Automation Application Demonstration
