SAOF Series Vacuum Cups
Vacuum Cups
Vacuum Cups
Vacuum Cups

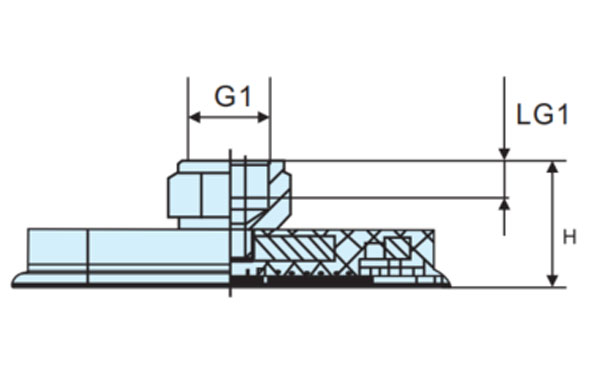

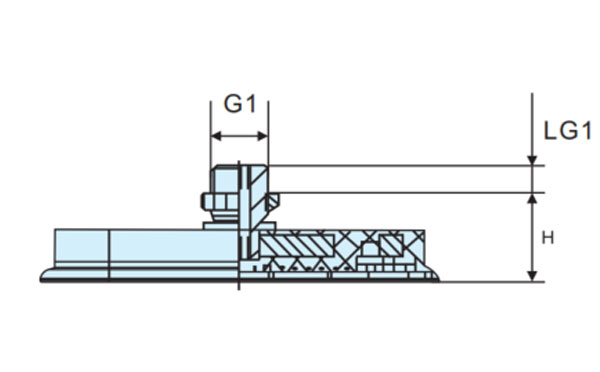

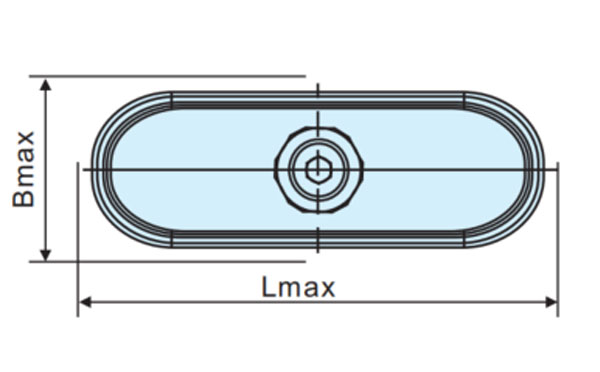

Dimensions

PN Model # Suction
(N)		 Lateral Force
(N)		 Inner-Dia
(mm)		 Dmax (S)
(mm)		 G1
(mm)		 H
(mm)		 LG1
(mm)		 Lmax (S)
(mm)		 Weight
(g)
1.Y13024 SAOF-50x16-G3/8AG 31 24 4 18 G3/8-M 26 8 52 24
1.Y13025 SAOF-50x16-G3/8IG 31 24 4 18 G3/8-F 34 9 52 45
1.Y13026 SAOF-60x23-G3/8AG 57 37 4 25 G3/8-M 18 8 64 21
1.Y13027 SAOF-60x23-G3/8IG 57 37 4 25 G3/8-F 26 9 64 42
1.Y13028 SAOF-90x30-G3/8AG 122 96 4 34 G3/8-M 19 8 94 39g
1.Y13029 SAOF-90x30-G3/8IG 122 96 4 34 G3/8-F 27 9 94 60
1.Y13030 SAOF-80x40-G3/8AG 140 110 4 43 G3/8-M 20 8 85 34
1.Y13031 SAOF-80x40-G3/8IG 140 110 4 43 G3/8-F 28 9 85 55
1.Y13032 SAOF-100x50-G3/8AG 217 181 6 54 G3/8-M 22 8 106 63
1.Y13033 SAOF-100x50-G3/8IG 217 181 6 54 G3/8-F 31 9 106 85
1.Y13034 SAOF-120x60-G3/8AG 312 254 6 65 G3/8-M 24 8 128 77
1.Y13035 SAOF-120x60-G3/8IG 312 254 6 65 G3/8-F 33 9 128 99
1.Y13037 SAOF-140x70-G3/8IG 425 344 6 76 G3/8-F 34 9 149 107

Note: The actual force of the suction cup in use with 65% vacuum and including a safety factor of 2 for horizontal handling and a factor of 4 for vertical handling.
