SAF Series Vacuum Cups
Vacuum Cups
Vacuum Cups

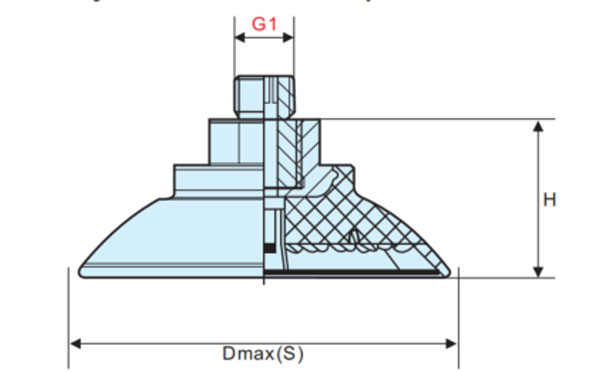

Dimensions

PN Model # Suction
(N)		 Lateral Force
(N)		 Inner-Dia
(mm)		 Dmax (S)
(mm)		 G1
(mm)		 H
(mm)		 LG1
(mm)		 Weight
(g)
1.Y13010 SAF-30-G3/8AG 38 30 4 34 G3/8-M 20 10 17
1.Y13011 SAF-30-G3/8IG 38 30 4 34 G3/8-F 36 9 43
1.Y13012 SAF-40-G3/8AG 69 52 4 46 G3/8-M 22 10 19
1.Y13013 SAF-40-G3/8IG 69 52 4 46 G3/8-F 38 9 45
1.Y13014 SAF-50-G3/8AG 100 80 4 56 G3/8-M 28 10 40
1.Y13015 SAF-50-G3/8IG 100 80 4 56 G3/8-F 28 15 31
1.Y13016 SAF-60-G3/8AG 150 105 6 67 G3/8-M 31 10 46g
1.Y13017 SAF-60-G3/8IG 150 105 6 67 G3/8-F 31 15 37
1.Y13018 SAF-80-G3/8AG 272 205 6 89 G3/8-M 35 10 65
1.Y13019 SAF-80-G3/8IG 272 205 6 89 G3/8-F 35 15 56
1.Y13020 SAF-100-G3/8AG 430 310 6 110 G3/8-M 36 10 76
1.Y13021 SAF-100-G3/8IG 430 310 6 110 G3/8-F 36 15 67
1.Y13023 SAF-125-G3/8IG 660 475 9 135 G3/8-F 43 15 146

Note: The actual force of the suction cup in use with 65% vacuum and including a safety factor of 2 for horizontal handling and a factor of 4 for vertical handling.
