SAB Series Two Layers Vacuum Cups

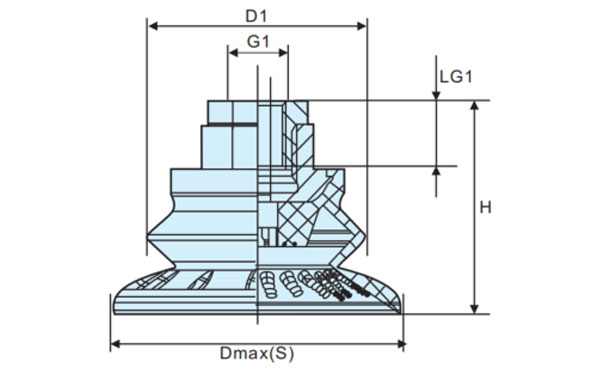

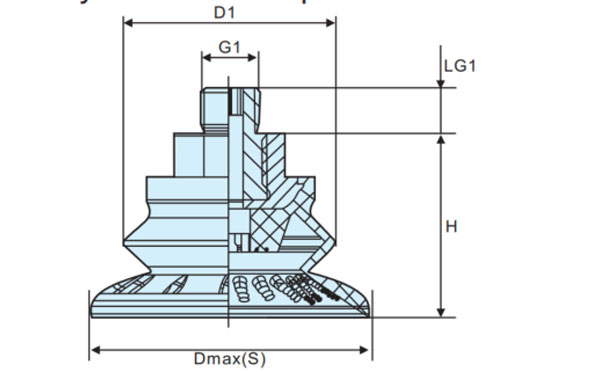

Dimensions
| PN | Model # | Suction (N) | Lateral Force (N) | Pull-Out Force (N) | Inner-Dia (mm) | Dmax (S) (mm) | G1 (mm) | D1 (mm) | H (mm) | LG1 (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.Y13038 | SAB-22-G3/8AG | 16 | 24 | 18 | 4 | 24 | G3/8-M | 22 | 25 | 10 | 15 |
| 1.Y13039 | SAB-22-G3/8IG | 16 | 24 | 18 | 4 | 24 | G3/8-F | 22 | 41 | 9.5 | 41 |
| 1.Y13040 | SAB-30-G3/8AG | 22 | 33 | 30 | 4 | 34 | G3/8-M | 32 | 28 | 10 | 19 |
| 1.Y13041 | SAB-30-G3/8IG | 22 | 33 | 30 | 4 | 34 | G3/8-F | 32 | 44 | 9.5 | 45 |
| 1.Y13042 | SAB-40-G3/8AG | 38 | 59 | 36 | 4 | 45 | G3/8-M | 32 | 28.8 | 10 | 20 |
| 1.Y13043 | SAB-40-G3/8IG | 38 | 59 | 36 | 4 | 45 | G3/8-F | 32 | 44.8 | 9.5 | 45 |
| 1.Y13044 | SAB-50-G3/8AG | 53 | 87 | 55 | 4 | 56 | G3/8-M | 40 | 36.9 | 10 | 41 |
| 1.Y13045 | SAB-50-G3/8IG | 53 | 87 | 55 | 4 | 56 | G3/8-F | 40 | 36.9 | 15 | 32 |
| 1.Y13046 | SAB-60-G3/8AG | 82 | 130 | 82 | 6 | 67 | G3/8-M | 48 | 41.3 | 10 | 49 |
| 1.Y13047 | SAB-60-G3/8IG | 82 | 130 | 82 | 6 | 67 | G3/8-F | 48 | 41.3 | 15 | 40 |
| 1.Y13048 | SAB-80-G3/8AG | 135 | 221 | 145 | 6 | 89 | G3/8-M | 64 | 49.9 | 10 | 72 |
| 1.Y13049 | SAB-80-G3/8IG | 135 | 221 | 145 | 6 | 89 | G3/8-F | 64 | 49.9 | 15 | 63 |
| 1.Y13050 | SAB-100-G3/8AG | 190 | 357 | 220 | 6 | 110 | G3/8-M | 77 | 56.6 | 10 | 97 |
| 1.Y13051 | SAB-100-G3/8IG | 190 | 357 | 220 | 6 | 110 | G3/8-F | 77 | 56.6 | 15 | 88 |
| 1.Y13052 | SAB-125-G3/8AG | 250 | 558 | 352 | 9 | 135 | G3/8-M | 94 | 67.8 | 10 | 179 |
| 1.Y13053 | SAB-125-G3/8IG | 250 | 558 | 352 | 9 | 135 | G3/8-F | 94 | 67.8 | 15 | 170 |
Note: The actual force of the suction cup in use with 65% vacuum and including a safety factor of 2 for horizontal handling and a factor of 4 for vertical handling.
