QC-200 -- Round Manual Quick Changer
Quick Change Parameters
| No | Name | Value |
|---|---|---|
| 1 | Medium | Compressed Air |
| 2 | Pressure Range | 5~6 Bar |
| 3 | Temperature Range | 5~60°C |
| 4 | Robot Side Quick Changer | QC-R200K |
| 5 | Robot Side Quick Changer Weight | 2640g |
| 6 | Gripper Side Quick Changer | QC-G200 |
| 7 | Gripper Side Quick Changer Weight | 1890g |
| 8 | Vertical Pulling Force F | 2000N |
| 9 | Rotating Torque Mt | 600Nm |
| 10 | Reversal Torque Mb | 300Nm |
| 11 | Recomended Payload | 75kg |
| 12 | Precision | ±0.05 |
| 13 | Color | Black |

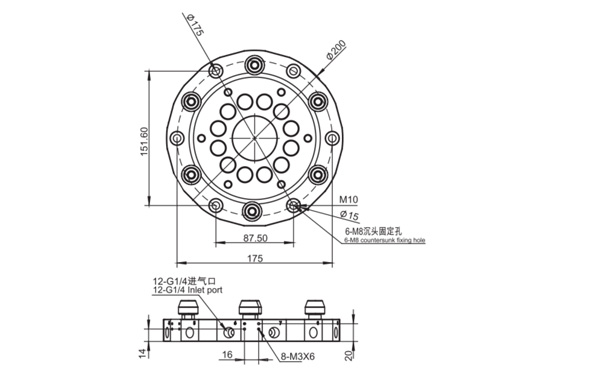

Dimensional Description
Robotic Side Quick Changer
Griper Side Quick Changer
Module Type
| Product Pic | Product Name | Model No. | PN | I/O Connection Type | Working Current | Wire-Male |
|---|---|---|---|---|---|---|
 | Robot Side Signal Module | QCSM-9R4 | 7.Y00821 | 9PIND-SUB | MAX 3A | R9-1000 (1.Y06423) |
 | Gripper Side Signal Module | QCSM-9G4 | 7.Y00822 | 9PIND-SUB | MAX 3A | G9-1000 (1.Y06424) |
*R9-1000, G9-1000 Optional, the wire's length is 1 meters
Interface
| PN | 7.Y00865 |
|---|---|
| Model | SIP-200B |
| QC-G... | QC-G150/QC-G200 |
| Thickness (T) | 8mm |
| Weight | 578g |
| Accessorier Selection | |
| Screws | PTC-M5L16*16 |
| Single Hole Shim | PTS-M5*16 |
| T-Nuts | PTN-M5*16 |
