QC-90 -- Round Manual Quick Changer
Quick Change Parameters
| No | Name | Value |
|---|---|---|
| 1 | Medium | Compressed Air |
| 2 | Pressure Range | 5~6 Bar |
| 3 | Temperature Range | 5~60°C |
| 4 | Robot Side Quick Changer | QC-R90K |
| 5 | Robot Side Quick Changer Weight | 103g |
| 6 | Gripper Side Quick Changer | QC-G90 |
| 7 | Gripper Side Quick Changer Weight | 227g |
| 8 | Vertical Pulling Force F | 400N |
| 9 | Rotating Torque Mt | 100Nm |
| 10 | Reversal Torque Mb | 60Nm |
| 11 | Recomended Payload | 15kg |
| 12 | Precision | ±0.05 |
| 13 | Color | Bronze Colored |
Dimensional Description

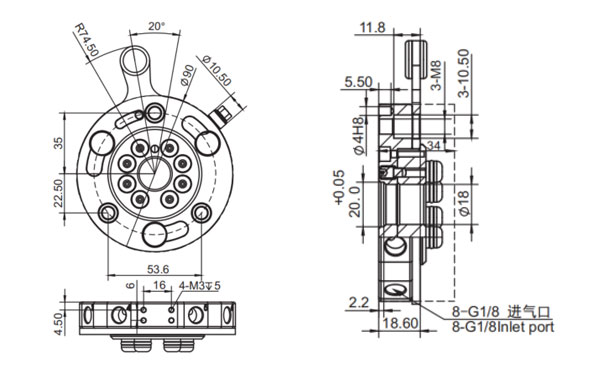

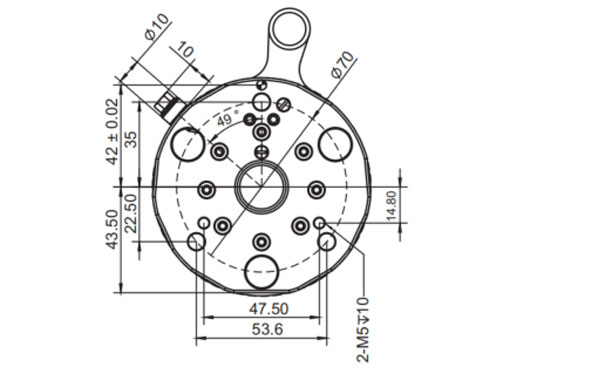

Robotic Side Quick Changer

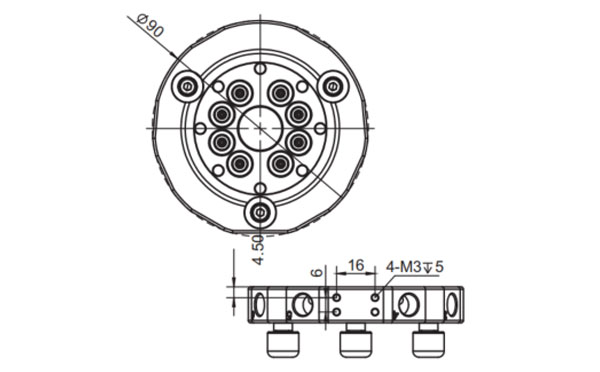

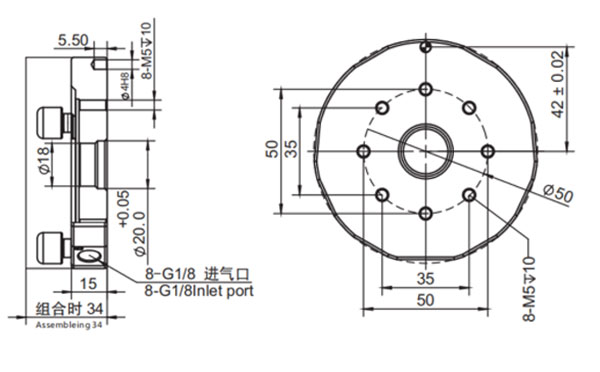

Griper Side Quick Changer
Module Type
| Product Pic | Product Name | Model No. | PN | I/O Connection Type | Working Current | Wire-Male |
|---|---|---|---|---|---|---|
 | Robot Side Signal Module | QCSM-9R2 | 7.Y00862 | 9PIND-SUB | MAX 3A | R9-1000 (1.Y06423) |
 | Gripper Side Signal Module | QCSM-9G2 | 7.Y00863 | 9PIND-SUB | MAX 3A | G9-1000 (1.Y06424) |
*R9-1000, G9-1000 Optional, the wire's length is 1 meters
Interface

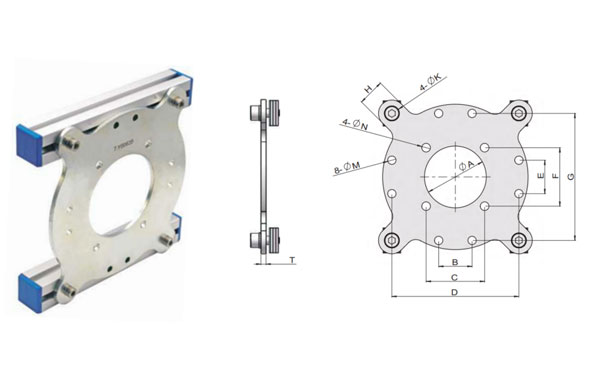

Kit with Screws Optional
For Example, if you want it with the kits, you can add T to the model No. SIP-50BT

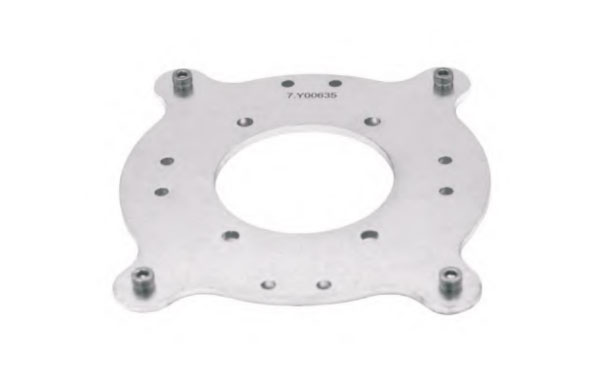

| PN | 7.Y00634 |
|---|---|
| Model | SIP-90B |
| QC-G... | QC-G90 |
| Thickness (T) | 3mm |
| Accessorier Selection | |
| Screws | PTC-M5L12*4 |
| Single Hole Shim | PTS-M5*4 |
| T-Nuts | PTN-M5*4 |
| Weight | 190g |
