PFG Series Vacuum Cups

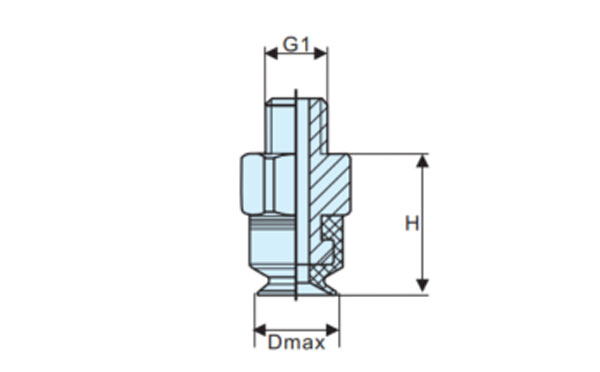

PFYN-2...PFYN3.5

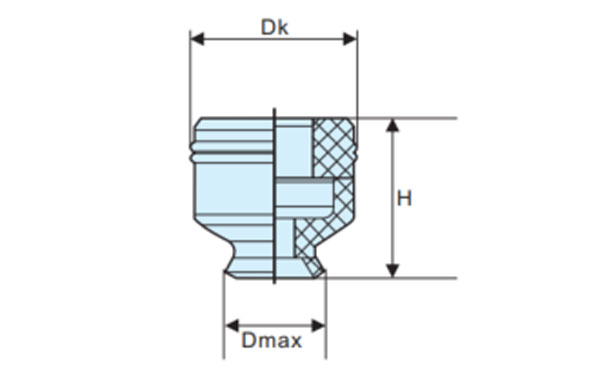

PFG-5...PFG-10

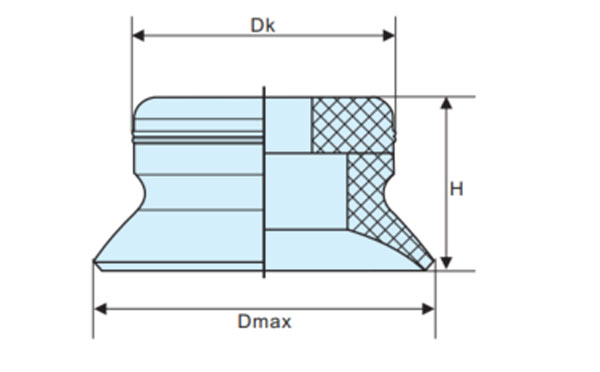

PFG-15...PFG-50

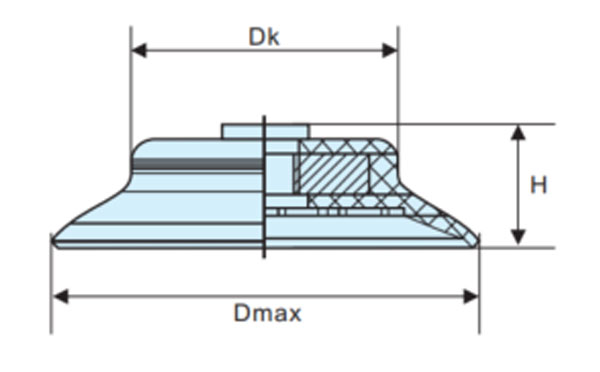

PFG-60...PFG-95

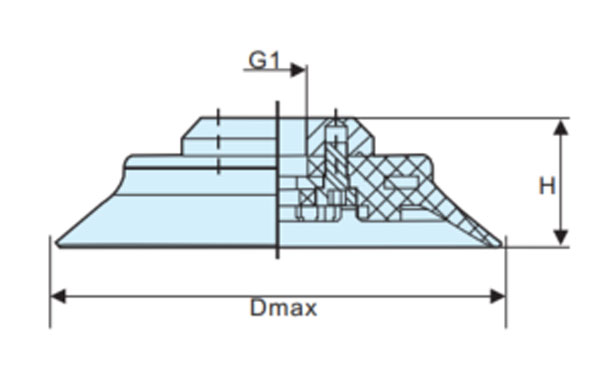

PFYN-120...PFYN-200

Dimensions

Model #	Suction (N)	Inner Dia (mm)	G1 (mm)	DK (mm)	Dmax (mm)	H (mm)	HBR-55 (Black)	SI-55 (Clear)	HT1-60 (Blue)	Weight (g)
PFYN-2-...	0.12	2	M3-M	-	2.5	6.0	1.Y12953	1.Y12972	1.Y12991	1
PFYN-3.5-...	0.42	2	M3-M	4.2	4.0	6.0	1.Y12954	1.Y12973	1.Y12992	1
PFG-5-...	0.75	2	-	7.7	5.5	6.5	1.Y12955	1.Y12974	1.Y12993	0.15
PFG-6-...	1.2	2	-	7.7	6.5	6.5	1.Y12956	1.Y12975	1.Y12994	0.17
PFG-8-..	2.3	2	-	8.2	9.0	7.0	1.Y12957	1.Y12976	1.Y12995	0.23
PFG-10-...	4.0	2	-	8.7	11.5	7.5	1.Y12958	1.Y12977	1.Y12996	0.30
PFG-15-...	9.0	4	-	12.2	17.5	8.0	1.Y12959	1.Y12978	1.Y12997	1
PFG-20-...	15.5	4	-	15.2	23.0	10.0	1.Y12960	1.Y12979	1.Y12998	1
PFG-25-...	26.5	4	-	16.2	27.5	14.0	1.Y12961	1.Y12980	1.Y12999	3
PFG-30-...	34.0	4	-	15.1	31.5	12.0	1.Y12962	1.Y12981	1.Y13000	3
PFG-35-...	44.0	4	-	20.5	38.0	14.0	1.Y12963	1.Y12982	1.Y13001	6
PFG-40-...	57.7	4	-	24.3	43.0	14.0	1.Y12964	1.Y12983	1.Y13002	7
PFG-50-...	91.0	4	-	29.1	53.5	15.0	1.Y12965	1.Y12984	1.Y13003	11
PFG-60-...	125	6	-	38.7	64.0	18.0	1.Y12966	1.Y12985	1.Y13004	25
PFG-80-...	260	6	-	52.3	86.0	20.5	1.Y12967	1.Y12986	1.Y13005	52
PFG-95-...	350	6	-	68.2	102.0	19.0	1.Y12968	1.Y12987	1.Y13006	93
PFYN-120-...	540	9	G1/2-F	89.5	124	36.5	1.Y12969	1.Y12988	-	223
PFY-150-...	842	9	G1/2-F	104.5	158	45.5	1.Y12970	1.Y12989	1.Y13008	391
PFYN-200-...	1498	9	G1/2-F	142.5	222	50.5	1.Y12971	1.Y12990	-	555

Note: The suction specified above is the theoretical value when the vacuum degree is -0.6bar. For workpieces with smooth and dry surface and didn't take the tolerance into consideration.
