EOAT Parts
KQ2/KQ2U Series Y-Shaped Connector

Installation Dimension (mm)

Max Pipe Diameter (mm) PN Model No. φD (mm) L1(mm) L2(mm) P (mm) M (mm) Q (mm) φO (mm) φN (mm) Weight (g)
φ2 1.Y13205 KQ2U02-00A 5.8 25.8 16.1 5.8 11.9 4.5 6 3.2 1.4
φ3.2 1.Y13206 KQ2U23-00A 7.1 28.9 18 7.1 13.3 5.2 6 3.2 2.3
φ4 1.Y02601 KQ2U04-00A 8.2 29 18.2 8.2 13.3 5.7 6 3.2 2.8
φ6 1.Y02600 KQ2U06-00A 10.4 30.1 19.4 10.4 13.3 6.8 6 3.2 3.8
φ8 1.Y03078 KQ2U08-00A 13.2 33.2 22.3 13.2 14.2 8.7 8 4.2 7
φ10 1.Y13207 KQ2U10-00A 15.9 37.1 25 15.9 15.6 10.1 8 4.2 11
φ12 1.Y13208 KQ2U12-00A 18.5 41.1 27.8 18.5 17 11.4 8 4.2 15.7
φ16 1.Y13209 KQ2U16-00A 23.8 51.5 35 23.8 20.6 14 8 4.2 29.8

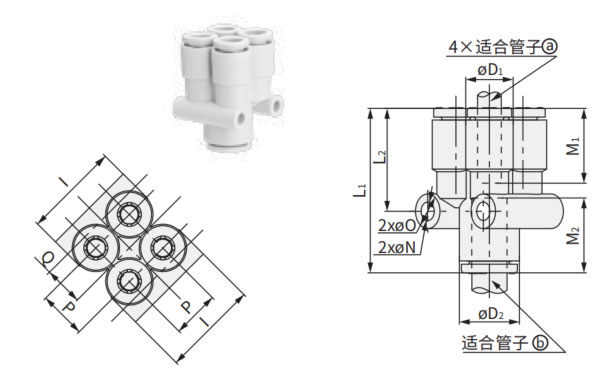

Connector
Pipe Out-Dia (mm) PN Model No. φD1
(mm)		 φD2
(mm)		 L1
(mm)		 L2
(mm)		 P
(mm)		 I
(mm)		 M1
(mm)		 M2
(mm)		 Q
(mm)		 φO
(mm)		 φN
(mm)		 Weight
(g)
a b
φ4 φ6 1.Y06909 KQ2UD04-06A 8.2 10.4 29.2 18.2 8.2 16.6 13.3 13.3 6.8 6 3.2 5.4
φ6 φ8 1.Y08529 KQ2UD06-08A 10.4 13.2 32 20.5 10.4 21 13.3 14.2 8.2 6 3.2 8.1
