KQ2/KQ2T Series T-Joint Connectors

sales06@switek.biz

+86 186 5927 5869

Installation Dimension (mm)

Max Pipe Diameter (mm)	PN	Model No.	φD (mm)	L₁(mm)	L₂(mm)	M (mm)	Q (mm)	φO (mm)	φN (mm)	Weight (g)
φ2	1.Y13193	KQ2T02-00A	5.8	12.9	15.8	11.9	4.5	6	3.2	1.4
φ3.2	1.Y13194	KQ2T23-00A	7.1	14.9	18.5	13.3	5.4	6	3.2	2.3
φ4	1.Y03077	KQ2T04-00A	8.2	15.3	19.4	13.3	5.7	6	3.2	2.8
φ6	1.Y03076	KQ2T06-00A	10.4	16.3	21.5	13.3	6.8	6	3.2	3.8
φ8	1.Y00761	KQ2T08-00A	13.2	18.2	24.8	14.2	8.4	8	4.2	7
φ10	1.Y13195	KQ2T10-00A	15.9	20.6	28.6	15.6	9.6	8	4.2	11
φ12	1.Y13196	KQ2T12-00A	18.5	23	32.3	17	10.7	8	4.2	15.7
φ16	1.Y13197	KQ2T16-00A	23.8	28.6	40.5	20.6	13.4	8	4.2	29.8

Pipe Out-Dia (mm)	PN	Model No.	M	H	φD₁(mm)	φD₂(mm)	L₁(mm)	L₂(mm)	A (mm)	M (mm)	Weight (g)
φ3.2	1.Y13174	KQ2T23-01AS	1/8	10	7.1	10	14.5	16.6	17.1	13.3	5.2
φ3.2	1.Y13175	KQ2T23-02AS	1/4	14	7.1	10	14.5	21.1	20	13.3	14.7
φ4	1.Y13176	KQ2T04-01AS	1/8	10	8.2	10	14.8	16.2	17.2	13.3	5.5
φ4	1.Y13177	KQ2T04-02AS	1/4	14	8.2	10	14.8	21.7	21.1	13.3	15
φ6	1.Y05154	KQ2T06-01AS	1/8	10	10.4	10	15.5	17.3	19.4	13.3	6.1
	1.Y13178	KQ2T06-02ASS	1/4	14	10.4	10	15.5	22.8	23.3	13.3	15.6
	1.Y13179	KQ2T06-03AS	3/8	17	10.4	10	15.5	24.1	24.2	13.3	15.6
φ8	1.Y13180	KQ2T08-01AS	1/8	10	13.2	10	16.4	18.7	22.2	14.2	7.9
	1.13181	KQ2T08-02AS	1/4	14	13.2	12	17.2	25.4	27.3	14.2	19.4
	1.Y13182	KQ2T08-03AS	3/8	17	13.2	12	17.2	25.5	27	14.2	26.5
φ10	1.Y13183	KQ2T10-01AS	1/8	12	15.9	12	18.6	23.5	28.4	15.6	13.9
	1.Y13184	KQ2T10-02AS	1/4	17	15.9	17	19.3	28.6	31.9	15.6	24.3
	1.Y13185	KQ2T10-03AS	3/8	17	15.9	17	19.3	29.5	32.4	15.4	24.8
	1.Y13186	KQ2T10-04AS	1/2	22	15.9	17	19.3	33.5	35.1	15.6	47.3
φ12	1.Y13187	KQ2T12-02AS	1/4	17	18.5	17	21.5	29.9	34.5	17	27.3
	1.Y13188	KQ2T12-03AS	3/8	17	18.5	17	21.5	30.8	35	17	28
	1.Y13189	KQ2T12-04AS	1/2	22	18.5	17	21.5	34.8	37.7	17	50.4
φ16	1.Y13190	KQ2T16-02AS	1/4	17	23.8	17	25.1	32.6	39.8	20.6	35.5
	1.Y13191	KQ2T16-03AS	3/8	22	23.8	21	27.1	35.4	42.2	20.6	47.7
	1.Y13192	KQ2T16-04AS	1/2	22	23.8	21	27.1	34.1	39.6	20.6	51.4

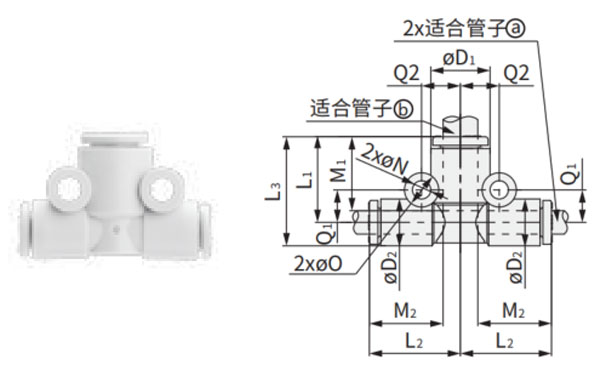

Pipe Out-Dia (mm)		PN	Model No.	φD₁ (mm)	φD₂ (mm)	L₁ (mm)	L₂ (mm)	L₃ (mm)	M₁ (mm)	M₂ (mm)	Q₁ (mm)	Q₂ (mm)	φO (mm)	φN (mm)	Weight (g)
a	b	PN	Model No.	φD₁ (mm)	φD₂ (mm)	L₁ (mm)	L₂ (mm)	L₃ (mm)	M₁ (mm)	M₂ (mm)	Q₁ (mm)	Q₂ (mm)	φO (mm)	φN (mm)	Weight (g)
φ3.2	φ4	1.Y13198	KQ2T23-04A	8.2	7.1	14.9	15.3	18.5	13.3	13.3	5.4	5.8	6	3.2	2.6
φ4	φ6	1.Y04160	KQ2T04-06A	10.4	8.2	15.3	16.3	19.4	13.3	13.3	5.7	6.8	6	3.2	3.3
φ6	φ8	1.Y04159	KQ2T06-08A	13.2	10.4	17.2	17.3	22.4	14.2	13.3	7.3	8.4	8	4.2	5.3
φ8	φ10	1.Y07561	KQ2T08-10A	15.9	13.2	19.6	19.2	26.2	15.6	14.2	8.4	9.6	8	4.2	8.3
φ10	φ12	1.Y13199	KQ2T10-12A	18.5	15.9	22	21.6	30	17	15.6	9.6	10.7	8	4.2	12.2
φ12	φ16	1.Y13200	KQ2T12-16A	23.8	18.5	26.6	25	35.9	20.6	17	10.7	13.4	8	4.2	20.1
φ6	φ4	1.Y13201	KQ2T06-04A	8.2	10.4	16.3	15.3	21.5	13.3	13.3	6.8	5.7	6	3.2	2.5
φ8	φ6	1.Y13202	KQ2T08-06A	10.4	13.2	17.3	17.2	23.9	13.3	14.2	8.4	7.3	8	4.2	6
φ10	φ8	1.Y13203	KQ2T10-08A	13.2	15.9	19.2	19.6	27.2	14.2	15.6	9.6	8.4	8	4.2	9.5
φ12	φ10	1.Y13204	KQ2T12-10A	15.9	18.5	21.6	22	30.9	15.6	17	10.7	9.6	8	4.2	13.4
