KQ2/KQ2L Series Elbow Connector

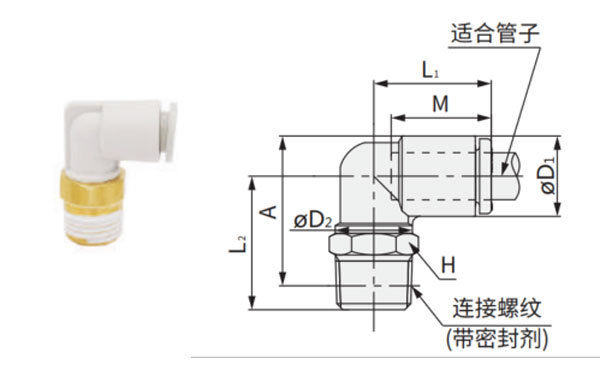

Installation Dimension (mm)
| Max Pipe Diameter (mm) | PN | Model No. | M | H | φD1(mm) | φD2(mm) | L1 (mm) | L2 (mm) | A (mm) | M (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| φ2 | 1.Y13136 | KQ2L02-M3G | M3 x 0.5 | 5.5 | 5.8 | 5.5 | 12.6 | 12.5 | 12.8 | 11.9 | 1.6 |
| 1.Y13137 | KQ2L02-M5A | M5 x 0.8 | 7 | 5.8 | 5.5 | 12.6 | 13 | 12.9 | 11.9 | 2.7 | |
| φ3.2 | 1.Y13138 | KQ2L23-M3G | M3 x 0.5 | 7 | 7.1 | 7 | 15.3 | 13.8 | 14.8 | 13.3 | 2.7 |
| 1.Y13139 | KQ2L23-M5A | M5 x 0.8 | 7 | 7.1 | 7 | 15.3 | 14.3 | 14.9 | 13.3 | 2.1 | |
| φ4 | 1.Y13140 | KQ2L04-M3G | M3 x 0.5 | 7 | 8.2 | 7 | 15.4 | 14.3 | 15.8 | 13.3 | 2.7 |
| 1.Y02599 | KQ2L04-M5A | M5 x 0.8 | 7 | 8.2 | 7 | 15.4 | 14.8 | 15.9 | 13.3 | 3.1 | |
| 1.Y13141 | KQ2L04-M6A | M6 x 1.0 | 8 | 8.2 | 7 | 15.4 | 15.8 | 15.9 | 13.3 | 4.2 | |
| φ6 | 1.Y02345 | KQ2L06-M5A | M5 x 0.8 | 7 | 10.4 | 7 | 14.5 | 16.5 | 18.7 | 13.3 | 3.2 |
| 1.Y13142 | KQ2L06-M6A | M6 x 1.0 | 8 | 10.4 | 7 | 14.5 | 17.5 | 18.7 | 13.3 | 4.3 |
| Pipe Out-Dia (mm) | PN | Model No. | M | H | φD1(mm) | φD2(mm) | φL1(mm) | φL2(mm) | A (mm) | M (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| φ3.2 | 1.Y13143 | KQ2L23-01AS | 1/8 | 10 | 7.1 | 10 | 14.5 | 16.7 | 17.2 | 13.3 | 4.6 |
| 1.Y13144 | KQ2L23-02AS | 1/4 | 14 | 7.1 | 10 | 14.5 | 21.2 | 20.1 | 13.3 | 14.1 | |
| φ4 | 1.Y05151 | KQ2L04-01AS | 1/8 | 10 | 8.2 | 10 | 14.8 | 16.2 | 17.2 | 13.3 | 4.8 |
| 1.Y05751 | KQ2L04-02AS | 1/4 | 14 | 8.2 | 10 | 14.8 | 21.7 | 21.1 | 13.3 | 14.3 | |
| φ6 | 1.Y02343 | KQ2L06-01AS | 1/8 | 10 | 10.4 | 10 | 15.5 | 17.3 | 19.4 | 13.3 | 5.2 |
| 1.Y11935 | KQ2L06-02AS | 1/4 | 14 | 10.4 | 10 | 15.5 | 22.8 | 23.3 | 13.3 | 14.7 | |
| 1.Y10180 | KQ2L06-03AS | 3/8 | 17 | 10.4 | 10 | 15.5 | 24.1 | 24.2 | 13.3 | 26.5 | |
| φ8 | 1.Y07560 | KQ2L08-01AS | 1/8 | 10 | 13.2 | 10 | 16.4 | 18.7 | 22.2 | 14.2 | 6.1 |
| 1.Y04922 | KQ2L08-02AS | 1/4 | 14 | 13.2 | 12 | 17.2 | 25.4 | 27.3 | 14.2 | 17.7 | |
| 1.Y05070 | KQ2L08-03AS | 3/8 | 17 | 13.2 | 12 | 17.2 | 25.5 | 27.0 | 14.2 | 24.7 | |
| φ10 | 1.Y13145 | KQ2L10-01AS | 1/8 | 12 | 15.9 | 12 | 18.6 | 23.6 | 28.4 | 15.6 | 11.1 |
| 1.Y06994 | KQ2L10-02AS | 3/8 | 17 | 15.9 | 17 | 19.3 | 28.7 | 31.9 | 15.6 | 21.7 | |
| 1.Y08074 | KQ2L10-03AS | 3/8 | 17 | 15.9 | 17 | 19.3 | 29.6 | 32.4 | 15.6 | 22.2 | |
| 1.Y13146 | KQ2L10-04AS | 1/2 | 22 | 15.9 | 17 | 19.3 | 33.6 | 35.1 | 15.6 | 44.6 | |
| φ12 | 1.Y13147 | KQ2L12-02AS | 1/4 | 17 | 18.5 | 17 | 21.5 | 30.0 | 34.5 | 17 | 23.5 |
| 1.Y13148 | KQ2L12-03AS | 3/8 | 17 | 18.5 | 17 | 21.5 | 30.9 | 35.0 | 17 | 24.1 | |
| 1.Y13149 | KQ2L12-04AS | 1/2 | 22 | 18.5 | 17 | 21.5 | 34.9 | 37.7 | 17 | 46.5 | |
| φ16 | 1.Y13150 | KQ2L16-02AS | 1/4 | 17 | 23.8 | 17 | 25.1 | 32.6 | 39.8 | 20.6 | 27.8 |
| 1.Y13151 | KQ2L16-03AS | 3/8 | 22 | 23.8 | 21 | 27.1 | 35.4 | 42.2 | 20.6 | 40.8 | |
| 1.Y13152 | KQ2L16-04AS | 1/2 | 22 | 23.8 | 21 | 27.1 | 34.1 | 39.6 | 20.6 | 44.5 |
