Installation Dimension (mm)

Max Pipe Diameter (mm)	PN	Model No.	φD	L (mm)	M (mm)	Weight (g)
φ2	1.Y13119	KQ2H02-00A	5.8	24.8	11.9	0.8
φ3.2	1.Y13120	KQ2H23-00A	7.1	27.6	13.3	1.4
φ4	1.Y13121	KQ2H04-00A	8.2	27.6	13.3	1.6
φ6	1.Y13122	K2H06-00A	10.4	27.6	13.3	2.1
φ8	1.Y13123	KQ2H08-00A	13.2	29.4	14.2	3.7
φ10	1.Y13124	KQ2H10-00A	15.9	32.2	15.6	5.5
φ12	1.Y13125	KQ2H12-00A	18.5	35	17	8.2
φ16	1.Y13126	KQ2H16-00A	23.8	42.2	20.6	15.2

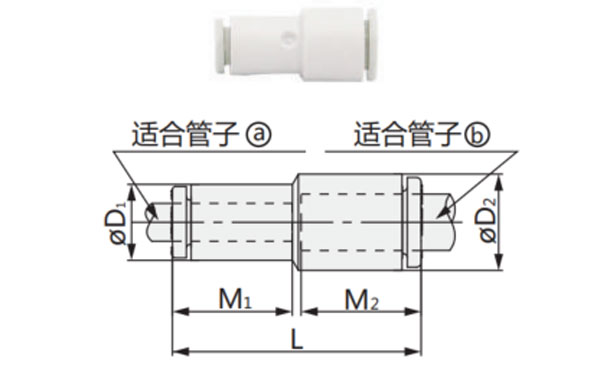

Pipe Out-Dia (mm)		PN	Model No.	φD1	φD2	L	M₁	M₂	Weight (g)
a	b	PN	Model No.	φD1	φD2	L	M₁	M₂	Weight (g)
φ2	φ3.2	1.Y13127	KQ2H02-23A	5.8	7.1	26.2	11.9	13.3	1.1
φ2	φ4	1.Y13128	KQ2H02-04A	5.8	8.2	26.2	11.9	13.3	1.2
φ3.2	φ4	1.Y13129	KQ2H23-04A	7.1	8.2	27.6	13.3	13.3	1.5
φ3.2	φ6	1.Y13130	KQ2H23-06A	7.1	10.4	27.6	13.3	13.3	1.8
φ4	φ6	1.Y13131	KQ2H04-06A	8.2	10.4	27.6	13.3	13.3	2
φ6	φ8	1.Y13132	KQ2H06-08A	10.4	13.2	28.5	13.3	14.2	2.9
φ8	φ10	1.Y13133	KQ2H08-10A	13.2	15.9	30.8	14.2	15.6	4.9
φ10	φ12	1.Y13134	KQ2H10-12A	15.9	18.5	33.6	15.6	17	7.2
φ12	φ16	1.Y13135	KQ2H12-16A	18.5	23.8	38.6	17	20.6	12.4
