Square Air Nippers

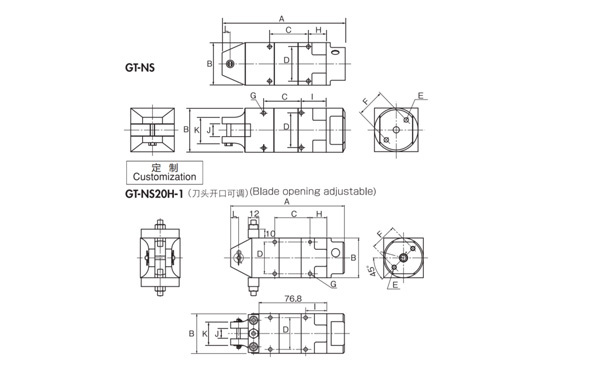

Installation Dimensions
| Model No. | Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | |
| GT-NS3 | 110 | 23 | 40 | 19 | M3 Depth8 | 17 | M3 Depth3.5 | 19 | 24 | 7 | 23 | 7 |
| GT-NS5 | 94 | 30 | 30 | 24 | M4 Depth10 | 20 | M3 Depth5 | 14 | 19 | 7 | 23 | 7 |
| GT-NS7 | 113 | 36 | 30 | 28 | M4 Depth10 | 24 | M4 Depth5.5 | 18 | 23 | 9 | 23 | 7 |
| GT-NS10L | 113 | 36 | 30 | 28 | M4 Depth10 | 24 | M4 Depth5.5 | 18 | 23 | 12 | 26 | 7 |
| GT-NS20 | 129 | 45 | 40 | 36 | M5 Depth12 | 30 | M4 Depth7 | 19 | 24 | 12 | 26 | 9 |
| GT-NS30 | 170 | 56 | 60 | 46 | M6 Depth12 | 40 | M5 Depth10 | 20 | 30 | 17 | 36 | 15 |
| GT-NS20H-1 | 129 | 45 | 40 | 36 | M5 Depth12 | 30 | M4 Depth7 | 19 | 24 | 12 | 26 | 9 |

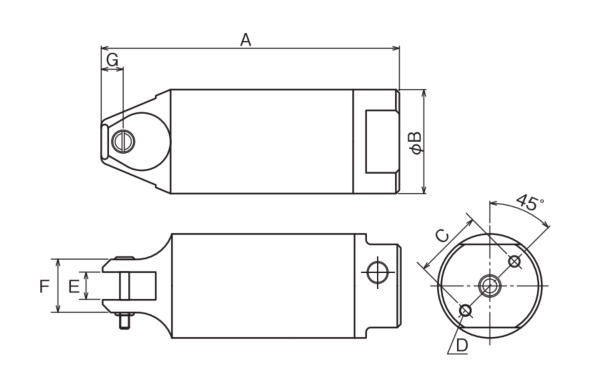

Round-Type Air Nipper Without Level
| Model No. | Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| GT-NR3 | 110 | 23 | 17 | M3 Depth8 | 7 | 14 | 7 | |||||
| GT-NR5 | 94 | 30 | 20 | M4 Depth10 | 7 | 17 | 7 | |||||
| GT-NR7 | 113 | 34 | 22 | M4 Depth10 | 9 | 17 | 7 | |||||
| GT-NR10L | 113 | 36 | 24 | M4 Depth10 | 12 | 20 | 7 | |||||
| GT-NR20 | 129 | 45 | 30 | M5 Depth12 | 12 | 23 | 9.5 | |||||
| GT-NR30 | 165 | 56 | 40 | M6 Depth12 | 17 | 30 | 10.5 | |||||
| GT-NR50 | 222 | 75 | 50 | M8 Depth12 | 25.2 | 43 | 15 | |||||

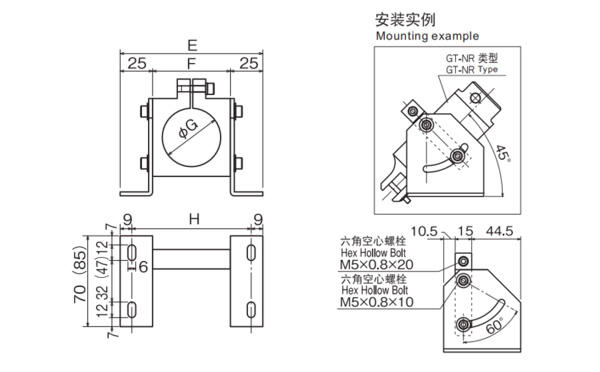

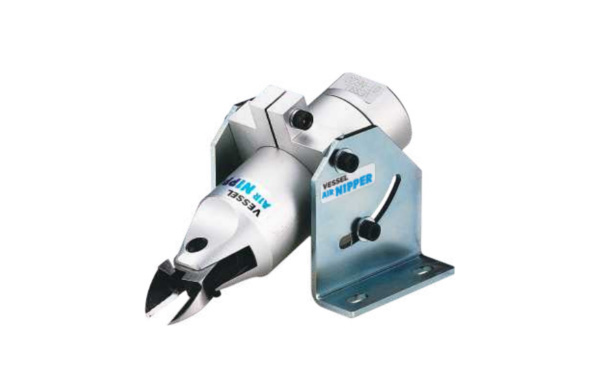

Round-Type Air Nipper Without Level Stand
| Model No. | Size (mm) | Weight (g) | |||
|---|---|---|---|---|---|
| E | F | G | H | ||
| NR10LST | 102 | 52 | 36 | 84 | 335 |
| NR20ST | 110 | 60 | 45 | 92 | 385 |
| NR30ST | 130 | 80 | 56 | 112 | 535 |
| NR50ST | 150 | 100 | 75 | 132 | 835 |

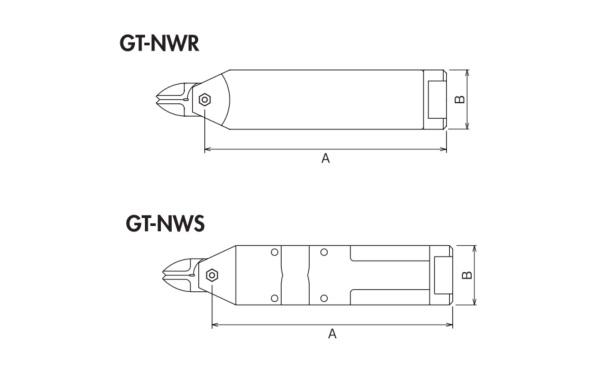

Double Action Air Nippers
| Model No. | Capacity φ(mm) | Air Consumption (cm3/str.) | Applied Pressure (N) | Air Pressure (MPa) | Size (mm) | Weight (g) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Copper | Steel | ABS Plastic | A | B | ||||||

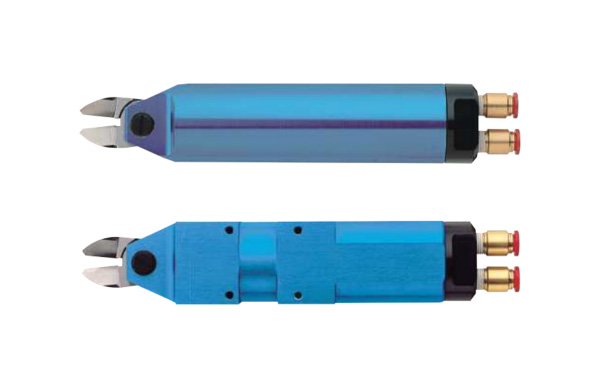

| Double Action Air Scissors (Round Type Without Level) | ||||||||||
| GT-NWR10 | 1.8 | 1.2 | 4.0 | 116 | 588 | 0.4~0.5 | 146 | φ36 | 280 | |
| GT-NWR20 | 2.6 | 2.0 | 6.5 | 230 | 1372 | 0.5~0.6 | 165 | φ45 | 523 | |
| GT-NWR30 | 3.3 | 2.8 | 9.5 | 584 | 2744 | 0.5~0.6 | 230.5 | φ56 | 980 | |
| Double Action Air Scissors (Square Type) | ||||||||||
| GT-NWS1 | 1.0 | 0.5 | 2.0 | 45 | 294 | 0.4~0.5 | 95 | 23 x 20 | 116 | |
| GT-NWS10 | 1.8 | 1.2 | 4.0 | 116 | 588 | 0.4~0.5 | 146 | 36 x 36 | 356 | |
| GT-NWS20 | 2.6 | 2.0 | 6.5 | 230 | 1,372 | 0.5~0.6 | 165 | 45 x 45 | 610 | |
| GT-NWS30 | 3.3 | 2.8 | 9.5 | 584 | 2,744 | 0.5~0.6 | 230.5 | 55 x 56 | 1115 | |
