Thrust-Cut Air Nipper
About the Trust-Cut Air Nipper
The 'Thrust-cut' air nipper equipped with a foot switch and linked to a high precision driver to enable the cutting of film-shaped gates from the thin end preventing wrinkles around the cut.

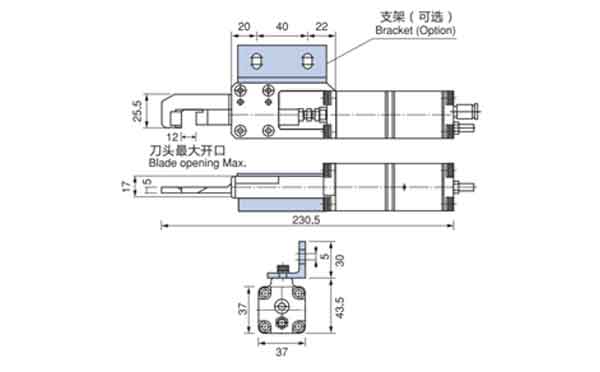

Installation Dimension (mm)
| Capacity φ(mm) ABS Plastic | Model No. | Air Consumption (cm3/str.) | Air Pressure (MPa) | Weight (g) | Applied Presure (N) | Spec.& Size of the Hose Port |
|---|---|---|---|---|---|---|
| 5 | GT-NK10 | 110 | 0.4~0.5 | 800 | 735 | Hose I.D. φ2.5 x O.D. φ4mm |

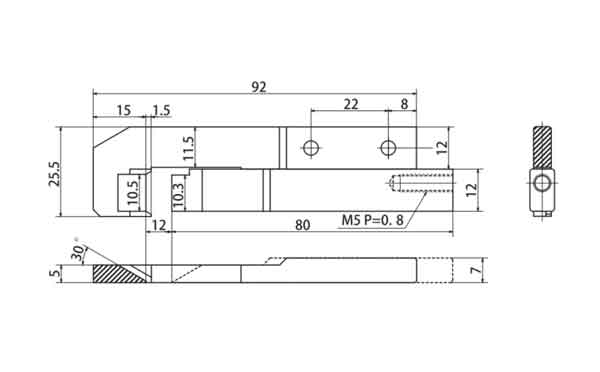

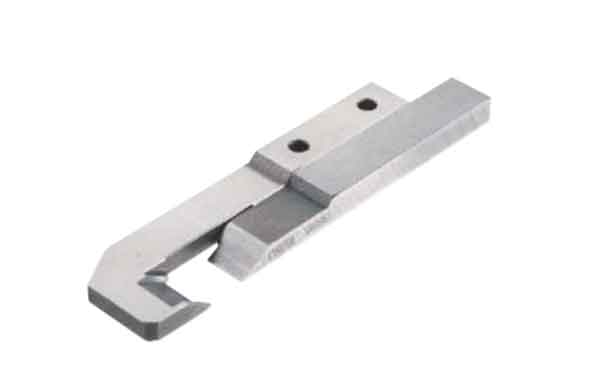

Thrust-Cut Air Nipper Blades

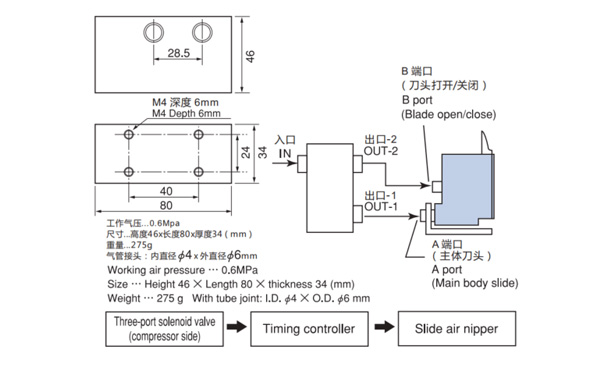

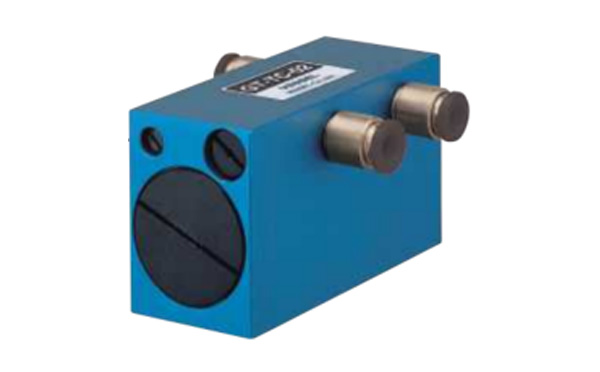

Related Items -- GT-TC-02 Timing Controller
The timming controller will enable a setting of the slide and cutting time (Approximately 0.5 seconds to 1.5 seconds) by connecting it between the compressor and the air nippers.
Automation Application Demonstration
