Air Nipper Body Round-Type without Lever
Installation Dimensions
| PN | Model No. | Size (mm) | Air Consumption (cm3/str.) | Air Pressure (MPa) | Weight (g) | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||
| 8.Y00113 | NR20-P | 129 | 45 | 30 | M5 Depth12 | 230 | 0.5~0.6 | 280 |
| 8.Y00237 | NR30-P | 165 | 56 | 40 | M6 Depth12 | 584 | 0.5~0.6 | 505 |

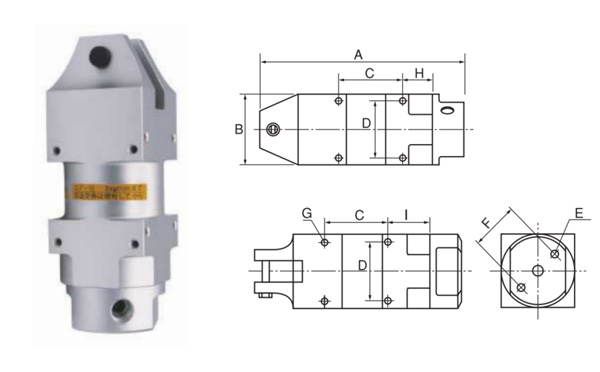

Square Type Air Nippers Body
| PN | Model No. | Size (mm) | Air Consumption (cm3/str.) | Air Pressure (MPa) | Weight (g) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |||||
| 8.Y00079 | NS20-P | 129 | 45 | 40 | 36 | M5 Depth 12 | 30 | M4 Depth 7 | 19 | 24 | 230 | 0.5~0.6 | 370 |
| 8.Y00080 | NS30-P | 170 | 56 | 60 | 46 | M6 Depth 12 | 40 | M5 Depth 10 | 20 | 30 | 584 | 0.5~0.6 | 685 |

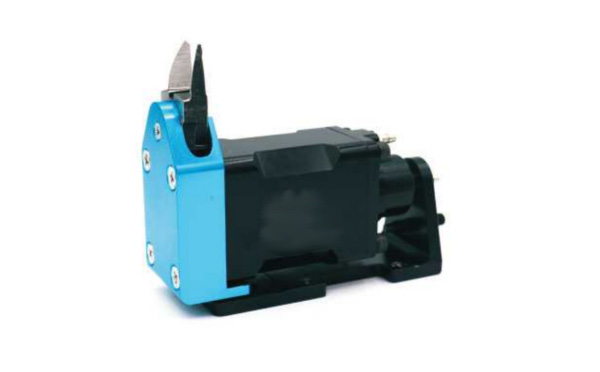

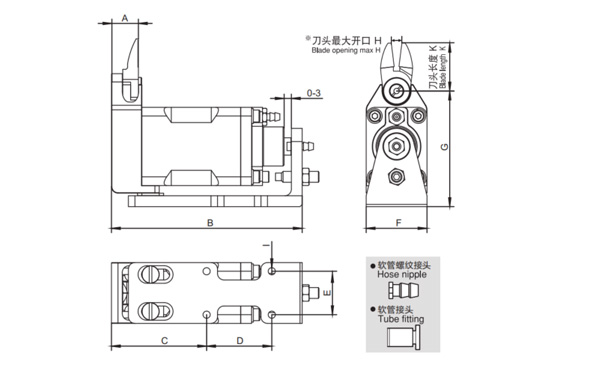

Slide-Off Air Nippers Body Horizontal-Type
| PN | Model No. | Size (mm) | Air Consumption (cm3/str.) | Weight (g) | Slide Direction/ Distance (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |||||
| 8.Y00270 | NY10-P | 12.4 | 87.8 | 43.8 | 30 | 20 | 28 | 53.2 | 4 | M4 | 48 | 155 | Pull 0~3 |
| 8.Y00249 | NY15-P | 13.2 | 96.5 | 45.5 | 35 | 25 | 33 | 58 | 6 | M4 | 48 | 155 | Pull 0~3 |

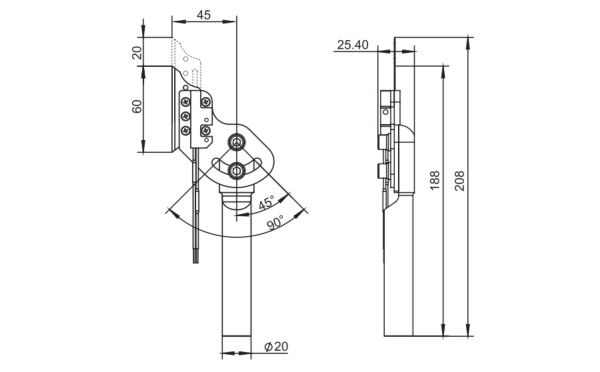

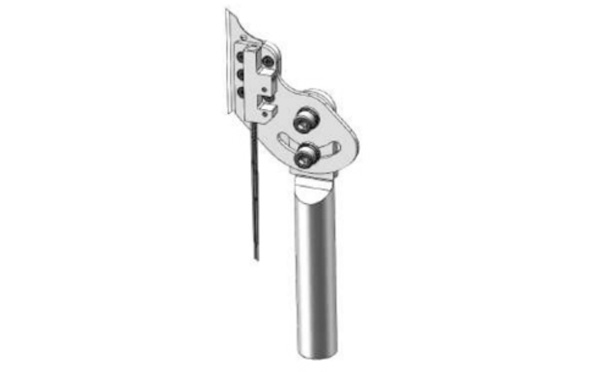

Heating Knife
| PN | Model No. | Weight (g) |
|---|---|---|
| 8.Y00346 | GT-BH2060 | 186 |
