GR12 Series High Rigidity Sprue Grippers

sales06@switek.biz

+86 186 5927 5869

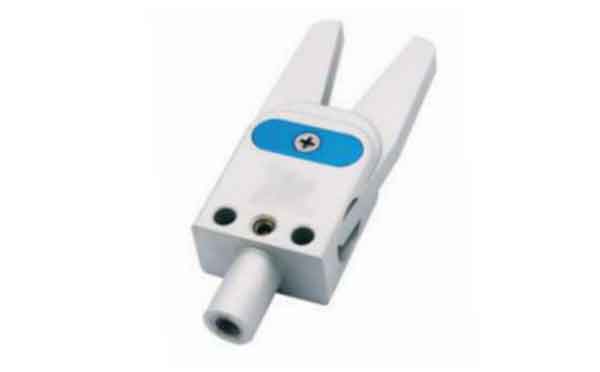

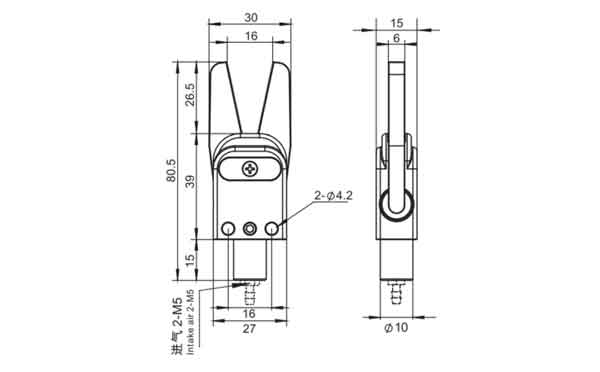

Model #: GR10A-12

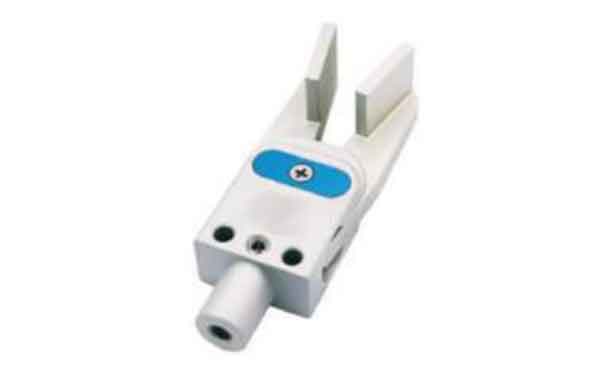

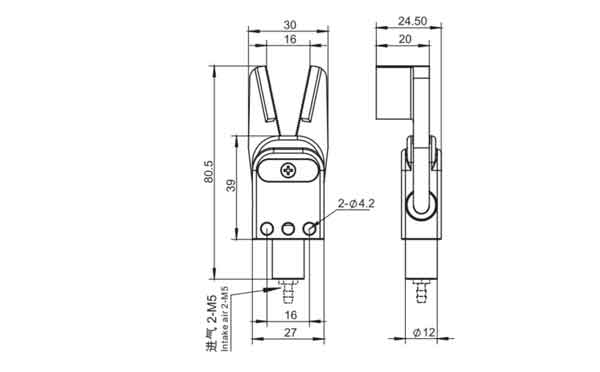

Model #: GR12L-12

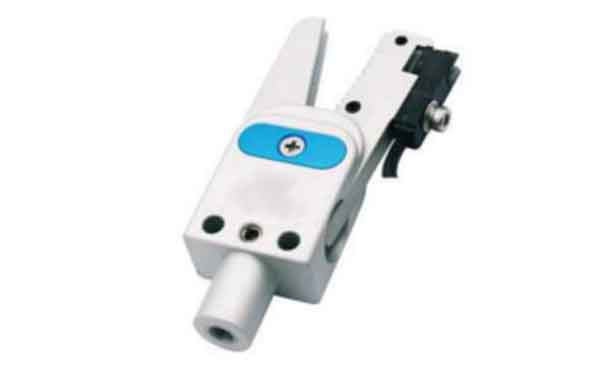

GR10A-12-CP

Series GR-Sprue Gripper

Model # & Specification

PN	Model No	Switch Type	F	Weight

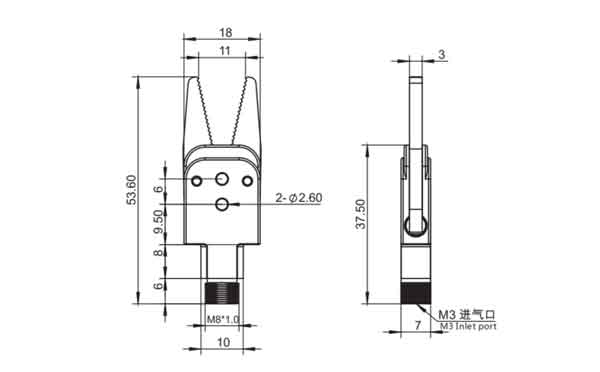

8.Y00348	GR05A-10	-	12N	9.6G
8.Y00268	GR10A-12	-	28N	44g
8.Y00267	GR10A-12-CP	PNP	28N	70g
8.Y00305	GR10A-12-CN	NPN	28N	70g
8.Y00370	GRD-12	-	28N	42g
8.Y00369	GR10D-12-CP	PNP	28N	61g
8.Y00048	GR12A-12	-	28N	44g
8.Y00098	GR12A-12-C	-	28N	44g
8.Y00050	GR12A-12-CP	PNP	28N	70g

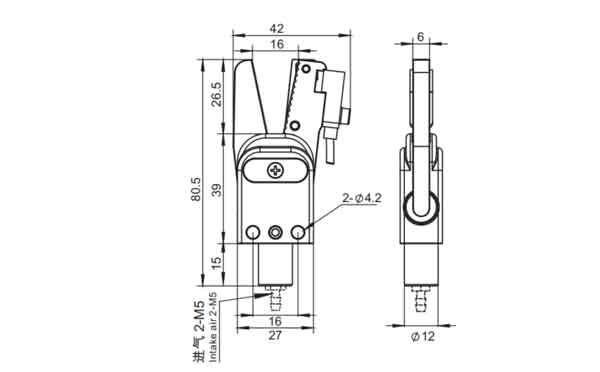

8.Y00091	GR12A-12-CN	NPN	28n	70g
8.Y00245	GR12B-12	-	28N	44g
8.Y00260	GR12B-12-C	-	28N	44g
8.Y00261	GR12B-12-CP	PNP	28N	70g

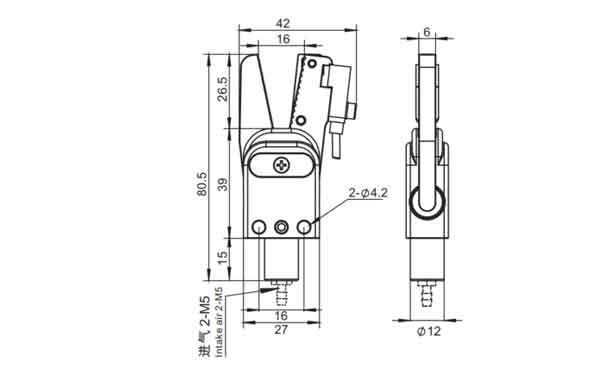

8.Y00262	GR12B-12-CN	NPN	28N	70g
8.Y00307	GR10L-12	-	28N	50g
8.Y00308	GR12L-12	-	28N	50g
8.Y00419	GR12M-12	-	28N	66.2g
8.Y00421	GR12M-12-CP	PNP	28N	82.5g
8.Y00420	GR12M-12-CN	NPN	28N	82.5g

Definition of the Model #

GR12A-12-CN

12: Dimension
A:Jaw Types
12:Bore
C:With C being able to mount a switch, without C can not

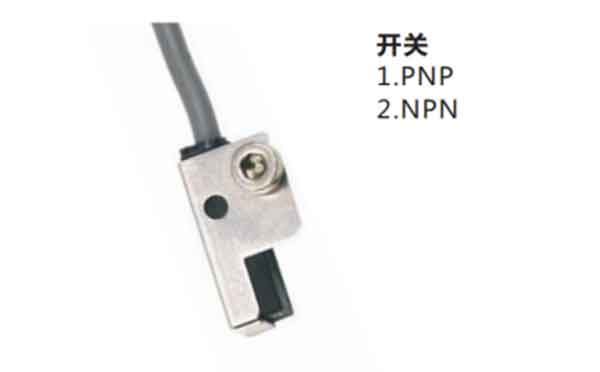

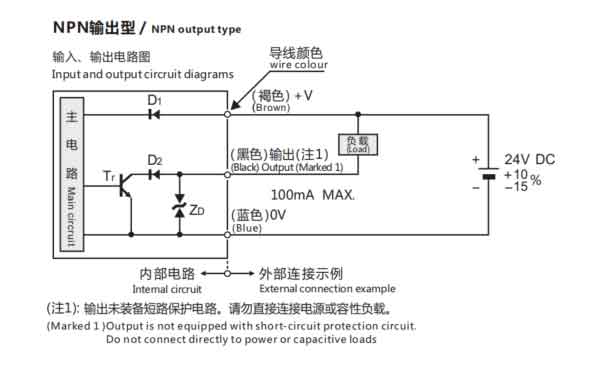

N:Switch type (NPN/PNP)

Features of the GR12 Series Sprue Gripper

The main body of the GR12 series sprue grippers are made of high-rigidity aluminium, light weight, strong rigidity and long life cycle. Using threaded components or CRG's components while assembled.

Accessories
