FG Series 3 Layers Vacuum Cups

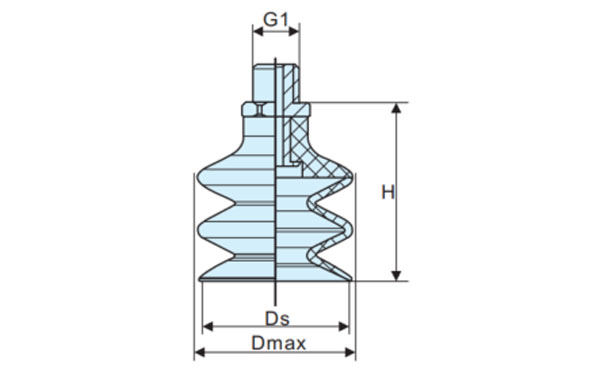

FSG-3...FSG-5

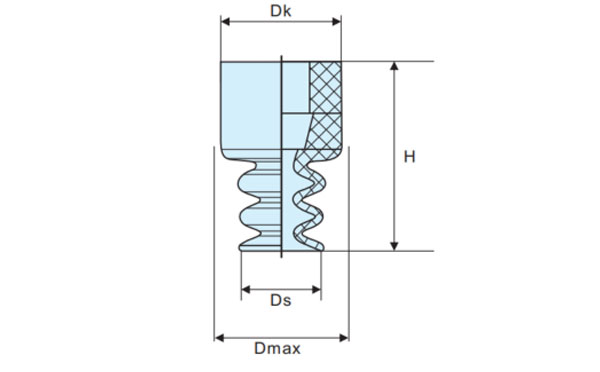

FG-7...FG-9

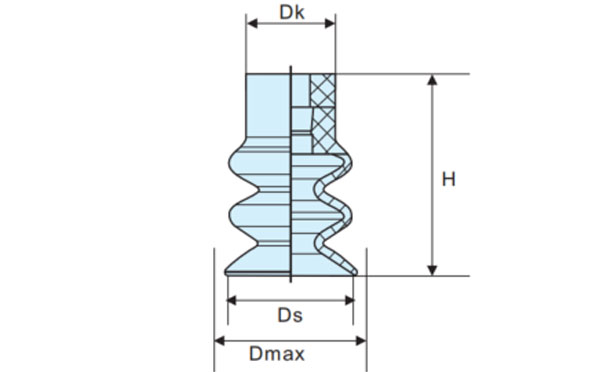

FG-12...FG-25

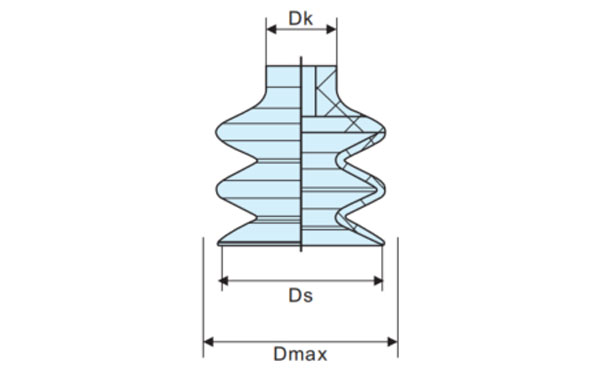

FG-32...fg-88

Dimensions

Model #	Suction (N)	Pull-Out Force (N)	Inner Dia (mm)	G1 (mm)	DK (mm)	Dmax(S) (mm)	Ds (mm)	H (mm)	NBR-55 (Black)	SI-55 (Clear)	HT1-60 (Blue)	Weight (g)
FSG-3-...	0.2	0.4	2	M3-M	-	4.0	3.0	8.7	1.Y12929	1.Y12931	1.Y12934	1
FSG-4-...	0.3	0.6	2	M5-M	-	7.0	3.8	19.0	1.Y12930	1.Y12932	1.Y12935	2
FSG-5-...	0.2	0.8	2	M5-M	-	7.0	5.0	19.0	1.Y12308	1.Y12319	1.Y12331	2
FG-7-...	0.1	0.9	4	-	9	9.0	5.9	14	1.Y12309	1.Y12320	1.Y12332	1
FG-9-...	0.7	2.3	4	-	9	9.5	9.0	15	1.Y12310	1.Y12321	1.Y12333	1
FG-12-...	0.9	3.5	4	-	10	13.0	12.0	21.0	1.Y12311	1.Y12322	1.Y12334	1
FG-14-...	1.2	5.7	4	-	10	15.5	14.5	22.8	1.Y12312	1.Y12323	1.Y12335	2
FG-18-...	2.3	8.5	4	-	10	19.0	17.2	22.6	1.Y12313	1.Y12324	1.Y12336	2
FG-20-...	3.8	12.1	4	-	10	21.0	20.0	22.1	1.Y12314	1.Y12325	1.Y12337	2
FG-25-...	4.5	19.0	4	-	10	26.0	23.0	34.0	1.Y12315	1.Y12326	1.Y12338	4
FG-32-...	12.0	36.9	6	-	18	33.5	32	37.5	1.Y12284	1.Y12327	1.Y11797	10
FG-42-...	13.6	44	6	-	18	45	42.6	46	1.Y12316	1.Y12328	1.Y12340	18
FG-52-...	27.0	96	6	-	18	55	52.5	48.7	1.Y12317	1.Y12329	1.Y12341	24
FG-62-...	39.6	137	6	-	18	65	62.2	54	1.Y12318	1.Y12330	1.Y12342	39
FG-88-...	45.2	286	9	-	25	95.5	89	86.5	1.Y12928	1.Y12933	-	166

Note: The suction specified above is the theoretical value when the vacuum degree is -0.6bar. For workpieces with smooth and dry surface and didn't take the tolerance into consideration.
