A Series Elbow Type Throttle Valve

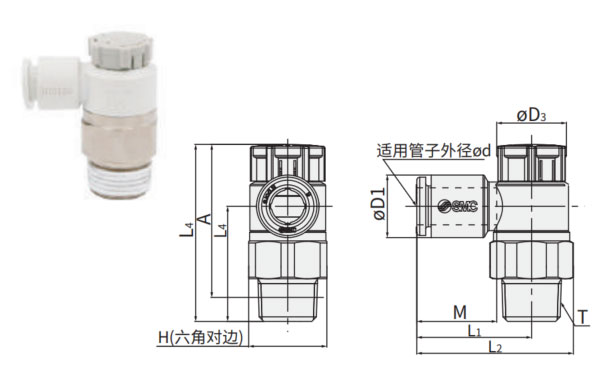

Installation Dimension (mm)
| Max Pipe Diameter (mm) | Model No. | T | H (mm) | φD1 (mm) | φD3 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4(mm) | A(mm) | M (mm) | AirIn (PN) | AirOut (PN) | Weight (g) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unlock | Lock | Unlock | Lock | |||||||||||||
| φ2 | As12-1F-M5-02A | M5x0.8 | 8 | 5.8 | 9.4 | 15.8 | 20.3 | 16.9 | 26.5 | 25.4 | 23.5 | 22.4 | 11.9 | 1.Y13218 | 1.Y13222 | 5 |
| φ3.2 | As12-1F-M5-23A | M5x0.8 | 8 | 7.2 | 9.4 | 17.2 | 21.7 | 16.9 | 26.5 | 25.4 | 23.5 | 22.4 | 13.3 | 1.Y13219 | 1.Y13223 | 5 |
| φ4 | As12-1F-M5-04A | M5x0.8 | 8 | 8.2 | 9.4 | 17.2 | 21.7 | 16.9 | 26.5 | 25.4 | 23.5 | 22.4 | 13.3 | 1.Y13220 | 1.Y13224 | 5 |
| φ6 | As12-1F-M5-06A | M5x0.8 | 8 | 10.4 | 9.4 | 18.6 | 23.1 | 16.5 | 26.5 | 25.4 | 23.5 | 22.4 | 13.3 | 1.Y13221 | 1.Y03830 | 6 |
| Pipe Out-Dia (mm) | Model No. | T | H (mm) | φD1 (mm) | φD3 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4(mm) | A (mm) | M (mm) | AirIn (PN) | AirOut (PN) | Weight (g) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unlock | Lock | Unlock | Lock | |||||||||||||
| φ3.2 | AS22-1F-01-23SA | 1/8 | 13 | 7.2 | 12 | 19.1 | 26.2 | 19.1 | 30.6 | 29.2 | 27.5 | 26.1 | 13.3 | 1.Y13225 | 1.Y13246 | 9 |
| φ4 | ASS-1F-01-04SA | 1/8 | 13 | 8.2 | 12 | 19.1 | 26.2 | 19.1 | 30.6 | 29.2 | 27.5 | 26.1 | 13.3 | 1.Y13226 | 1.Y13247 | 9 |
| φ6 | AS22-1F-01-06SA | 1/8 | 13 | 10.4 | 12 | 19.1 | 26.2 | 19.1 | 30.6 | 29.2 | 27.5 | 26.1 | 13.1 | 1.Y13227 | 1.Y05040 | 10 |
| φ8 | AS22-1F-01-08SA | 1/8 | 13 | 13.2 | 12 | 22.4 | 29.5 | 19.1 | 30.6 | 29.2 | 27.5 | 26.1 | 14.2 | 1.Y13228 | 1.Y13248 | 11 |
| φ10 | AS22-1F-01-10SA | 1/8 | 13 | 15.9 | 12 | 25.3 | 32.4 | 19.1 | 30.6 | 29.2 | 27.5 | 26.1 | 15.6 | 1.Y13229 | 1.Y13249 | 12 |
| φ3.2 | ASS-1F-02-23SA | 1/4 | 17 | 7.2 | 13 | 20.9 | 30.2 | 22.6 | 36.6 | 35 | 31.1 | 29.5 | 13.3 | 1.Y13230 | 1.Y13250 | 18 |
| φ4 | AS22-1F-02-04SA | 1/4 | 17 | 8.2 | 13 | 20.9 | 30.2 | 22.6 | 36.6 | 35 | 31.1 | 29.5 | 13.3 | 1.Y13231 | 1.Y13251 | 18 |
| φ6 | AS22-1F-02-06SA | 1/4 | 17 | 10.4 | 13 | 23.4 | 32.7 | 22.6 | 36.6 | 35 | 31.1 | 29.5 | 13.3 | 1.Y13232 | 1.Y06906 | 18 |
| φ8 | AS22-1F-02-08SA | 1/4 | 17 | 13.2 | 13 | 23.9 | 33.2 | 22.6 | 36.6 | 35 | 31.1 | 29.5 | 14.2 | 1.Y13233 | 1.Y08260 | 19 |
| φ10 | AS22-1F-02-10SA | 1/4 | 17 | 15.9 | 13 | 26.9 | 36.2 | 22.6 | 36.6 | 35 | 31.1 | 29.5 | 15.6 | 1.Y13234 | 1.Y13252 | 20 |
| φ6 | AS32-1F-06SA | 1/4 | 19 | 10.4 | 16.6 | 21.8 | 32.1 | 36.4 | 50 | 48.4 | 44.5 | 42.9 | 13.3 | 1.Y13235 | 1.Y13253 | 40 |
| φ8 | AS32-1F-02-08SA | 1/4 | 19 | 13.2 | 16.6 | 22.7 | 33 | 36.4 | 50 | 48.4 | 44.5 | 42.9 | 14.2 | 1.Y13236 | 1.Y13254 | 41 |
| φ10 | AS32-1F-02-10SA | 1/4 | 19 | 15.9 | 16.6 | 26.7 | 37 | 35.7 | 50 | 48.4 | 44.5 | 42.9 | 15.6 | 1.Y13237 | 1.Y13255 | 42 |
| φ12 | AS32-1F-02-12SA | 1/4 | 19 | 18.5 | 16.6 | 29.7 | 40 | 34.5 | 50 | 48.4 | 44.5 | 42.9 | 17 | 1.Y13238 | 1.Y13256 | 43 |
| φ6 | AS32-1F-03-06SA | 3/8 | 19 | 10.4 | 16.6 | 21.8 | 32.1 | 28.7 | 42.3 | 40.7 | 37.1 | 35.5 | 13.3 | 1.Y13239 | 1.Y13257 | 31 |
| φ8 | AS32-1F-03-08SA | 3/8 | 19 | 13.2 | 16.6 | 22.7 | 33 | 28.7 | 42.3 | 40.7 | 37.1 | 35.5 | 14.2 | 1.Y13240 | 1.Y13258 | 31 |
| φ10 | AS32-1F-03-10SA | 3/8 | 19 | 15.9 | 16.6 | 26.7 | 37 | 28 | 42.3 | 40.7 | 37.1 | 35.5 | 15.6 | 1.Y13241 | 1.Y13259 | 32 |
| φ12 | AS32-1F-03-12SA | 3/8 | 19 | 18.5 | 16.6 | 29.7 | 40 | 26.8 | 42.3 | 40.7 | 37.1 | 35.5 | 17 | 1.Y13242 | 1.Y13260 | 34 |
| φ10 | AS42-1F-04-10SA | 1/2 | 24 | 15.9 | 18.8 | 27.4 | 40.3 | 36.2 | 50.8 | 49.2 | 43.7 | 42.1 | 15.6 | 1.Y13243 | 1.Y13261 | 54 |
| φ12 | AS42-1F-04-12SA | 1/2 | 24 | 18.5 | 18.8 | 30.8 | 43.7 | 35.1 | 50.8 | 49.2 | 43.7 | 42.1 | 17 | 1.Y13244 | 1.Y13262 | 56 |
| φ16 | AS42-1F-04-16SA | 1/2 | 24 | 23.8 | 18.8 | 34.8 | 47.7 | 32.7 | 50.8 | 49.2 | 43.7 | 42.1 | 20.6 | 1.Y13245 | 1.Y13263 | 60 |
