Connectors
Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 1.Y03145 | APB-M3-φ4 | M3 | 4 | 2 | 5.5 | 3.5 | 4.5 | 0.6 |
| 1.Y05008 | APB-M5-φ4 | M5 | 5 | 2 | 6.5 | 3.5 | 7 | 1.4 |
| 1.Y01986 | APB-M5-φ6 | M5 | 4.5 | 2.5 | 7 | 4.8 | 7 | 1.7 |
Suction Stems

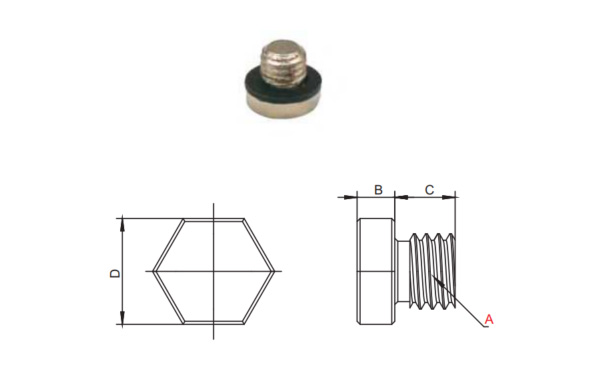

Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | D (mm) | Weight (g) |
|---|---|---|---|---|---|---|
| 1.Y06794 | APF-M3 | M3 | 2 | 3 | 4.9 | 0.5 |
| 1.Y02510 | APF-M5 | M5 | 2.5 | 4.5 | 7 | 1.4 |

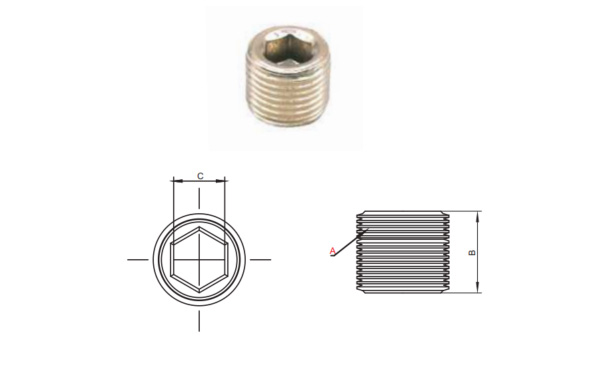

Installation Dimension (mm)
| PN | Model No. | A (mm) | B (mm) | C (mm) | Weight (g) |
|---|---|---|---|---|---|
| 1.Y00462 | APF-G18 | G1/8 | 8 | 5 | 3.0 |
| 1.Y00463 | APF-G14 | 1/4 | 9 | 6 | 6.2 |
