EOAT Assembly Demonstration -- Two Cavities Parts Picking EOAT with Runner Gripping

Product Descriptions

This EOAT is for One Cavity Parts Picking and In Mold Insertion;
The EOAT has Two Sides, One Side for Parts Picking, the Oter Side for In Mold Insertion;

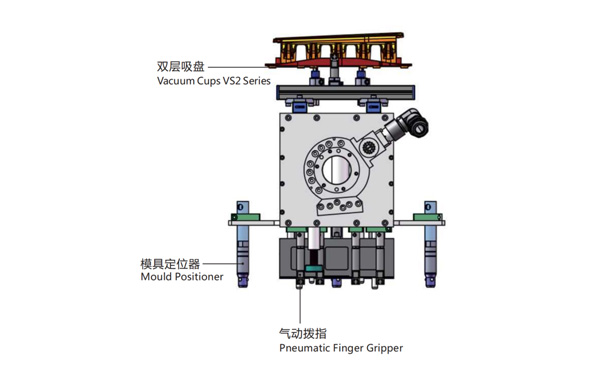

The Parts Would be Picked by the Vacuum Cups and One Finger Angular Pneumatic Gripper;
The EOAT to be Drived by Three Air Circuits, One for the Cylinder, the Other for Finger Angular Pneumatic Gripper and the Third One for Mould Positioner;
The Gross Weight of the EOAT Seet is about 9kg.

Bom List

Product Name	PN #	Model	Quantity

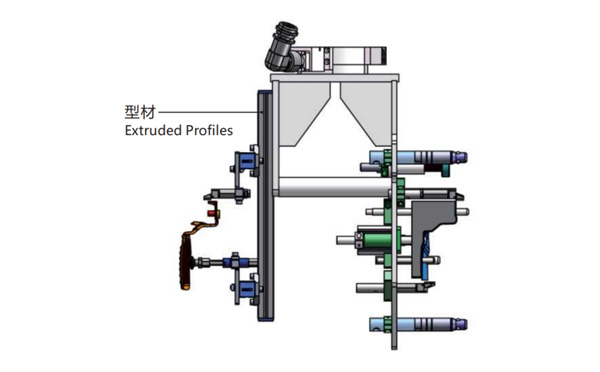

Extruded Profiles	4.Y00481	PEP2525-1500	1
Plugs for Profile	4.Y00070	PEP2525	8
Mould Positioner	8.Y00088	GMP20A	3
Vacuum Cups VS2 Series	1.Y05310	VS2-SA20	2
Rotative Suspensions	8.Y00061	VFR1421-G18	2
Pneumatic Finger Gripper	8.Y00084	GFR14-95G	7
Extension Tube	7.Y00733	SMBY14-50	6
Mounting Bracket	7.Y00200-T	SMBE1-1440T	3
Cross Mounting Bracket for Profiles	7.Y00194-T	SMBA-2525T	4
Vacuum Cup Fittings	7.Y00703	VM02-G18	2
